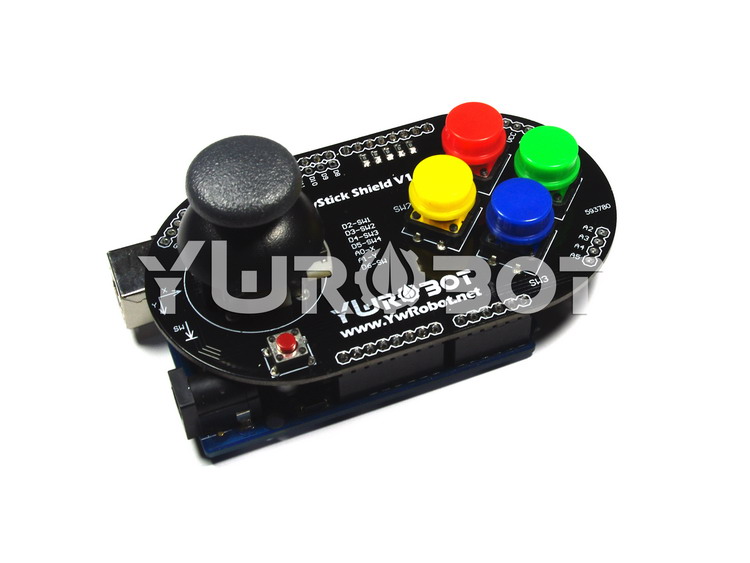

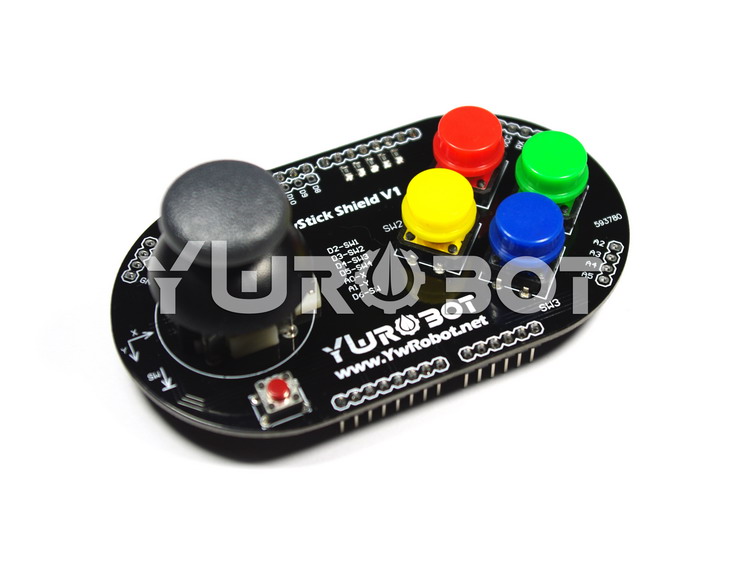

• Name: Arduino JoyStick Shield joysticks expansion board
• Item No: ARD040401
• Manufacturing: YwRobot

• Model: JoyStick Shield V1
• Size: 94 * 52mm
• Platform: Arduino
• Configuration is as follows:
• PS2 joystick (X axis A0, Y axis A1, Z axis key D6)
• Four separate buttons (D2, D3, D4, D5)
• Reserve expansion interface:
• An I2C interface
• A TTL serial port
• Analog interface (A2-A5)
• Digital Interface (D8-D13)
• Arduino reset button
• Note: The reserve expansion interface needs its own welding pin as needed

• Fully compatible with Arduino UNO R3 interfaces
• Rocker X \ Y-axis output is two potentiometers can be read by the AD converter twist angle
• Press down on the joystick, you can trigger all the way to touch the switch to digital output
• Four separate buttons, digital output, ease of use
• Board marked with the port configuration of each module to facilitate debugging
• Set aside the other port is not occupied, to facilitate post expansion

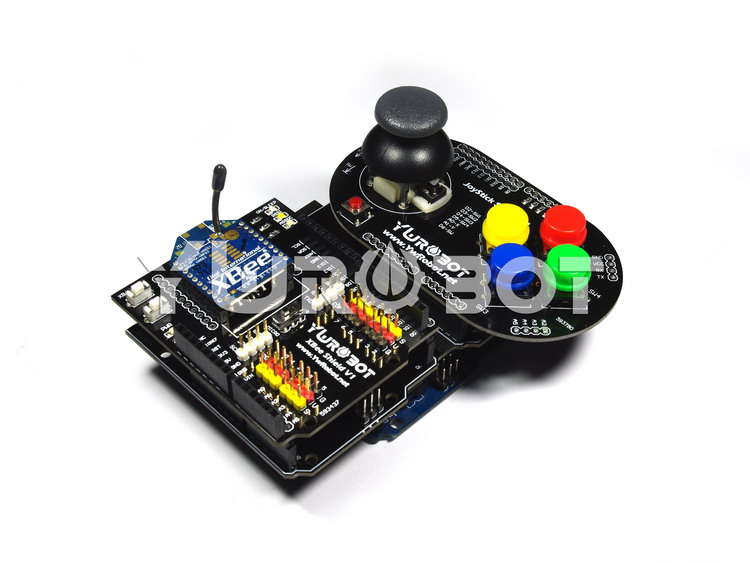

• The expansion board can be produced by a remote controller, combined with XBee module enables wireless control
• Arduino Leonardo combination can also simulate a computer mouse, etc.

Easy to use with the Arduino UNO (This product does not contain UNO)

Easy to use with the Arduino UNO (the product does not contain the UNO and other modules)

• Arduino JoyStick Shield joysticks expansion board * 1
• Schematic Arduino (obtained from the owner after the electronic version, buy) Code
• Packing: Antistatic bag
