IO¼¾¼­½¯µå ¼¾¼­È®À庸µå IO Sensor Shield Sensor expansion board [ARD030100]
Fully compatible with Arduino UNO R3 interfaces New color pin seat, yellow digital port, blue for the analog port, red for the power connector, for easy identification
ÆÇ¸Å°¡°Ý : 10,900¿ø
Àû¸³±Ý :110¿ø
»óǰ»óÅ :½Å»óǰ
Á¦Ç°ÄÚµå :1279488
Á¦Á¶»ç :YwRobot
ºê·£µå :YwRobot [ºê·£µå¹Ù·Î°¡±â]
Ãâ½ÃÀÏ :2018-06-11
±¸¸Å¼ö·® :
°³
ÃÑ ±Ý¾× :
MCUÀÌ¿ë ²ÜÆÁ

41,800¿ø
49,300¿ø
181,500¿ø
21,900¿ø
40,700¿ø
83,200¿ø
12,760¿ø
19,800¿ø
9,600¿ø
84,600¿ø
»ó¼¼Á¤º¸ ¹è¼Û/Ãë¼Ò/±³È¯¾È³» ÀÌ¿ëÈı⠻óǰQ&A

IO Sensor Shield Sensor expansion board [ARD030100]

Product Overview

  • Name: IO Sensor Shield Sensor expansion board
  • Item No: ARD030100
  • Manufacturing: YwRobot



Technical Parameters

  • IO Sensor Shield V1
  • Size: 63 * 53mm
  • weight:
  • Platform: Arduino
  • Port configuration is as follows:
  • 6 analog interface
  • 14 Digital Interface
  • An I2C interface (A4 SDA, A5 SCL)
  • An SD card expansion interface
  • A TTL serial port
  • A 3-way PWM full-color LED interfaces (D9, D10, D11)
  • 10P LCD Interface Parallel
  • 6P595 serial module expansion port
  • External reset Interface
  • 3.3v, 5V Power Interface
  • VIN external power input port
  • Steering auxiliary power outlet
  • Reset button



Product Feature

  • Fully compatible with Arduino UNO R3 interfaces
  • New color pin seat, yellow digital port, blue for the analog port, red for the power connector, for easy identification
  • All 3P and 3P Dupont interface corresponds to the color sensor cable compatible to prevent mismating

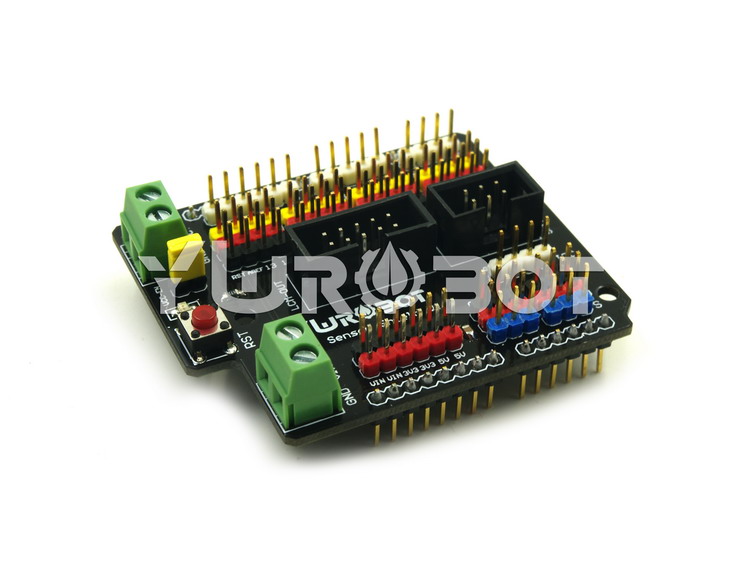

  • All gold-plated pins, sophisticated materials, electrical performance and stability

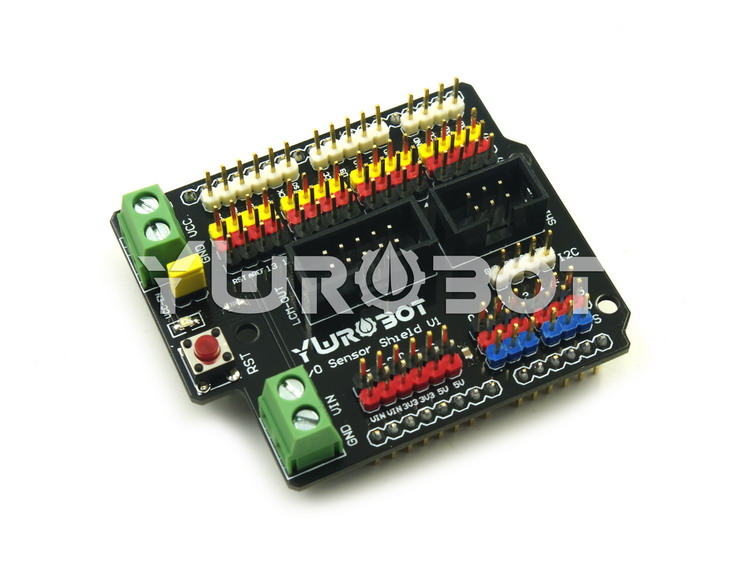

  • Excellent PCB design, elegant
  • A variety of special interface design, compatible with a variety of electronic building blocks of my shop module, easy to use

All gold-plated pins, sophisticated materials

3P connector pin color corresponding to the color sensor connection compatible for quick wiring

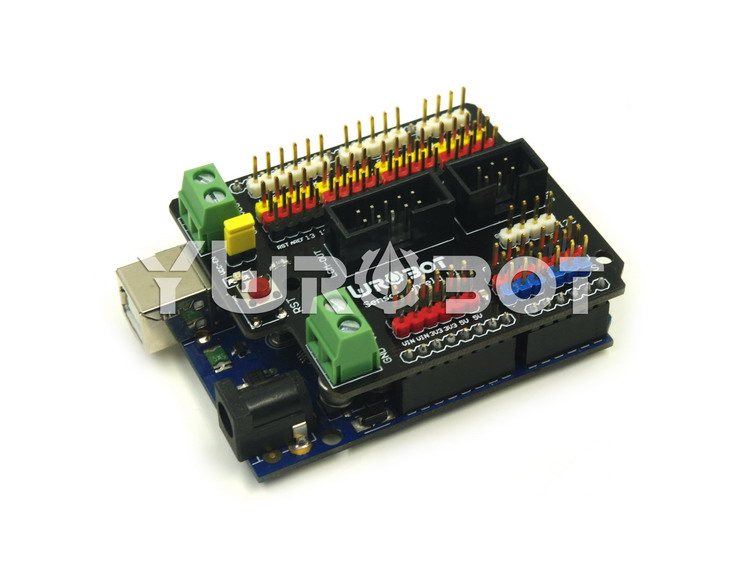

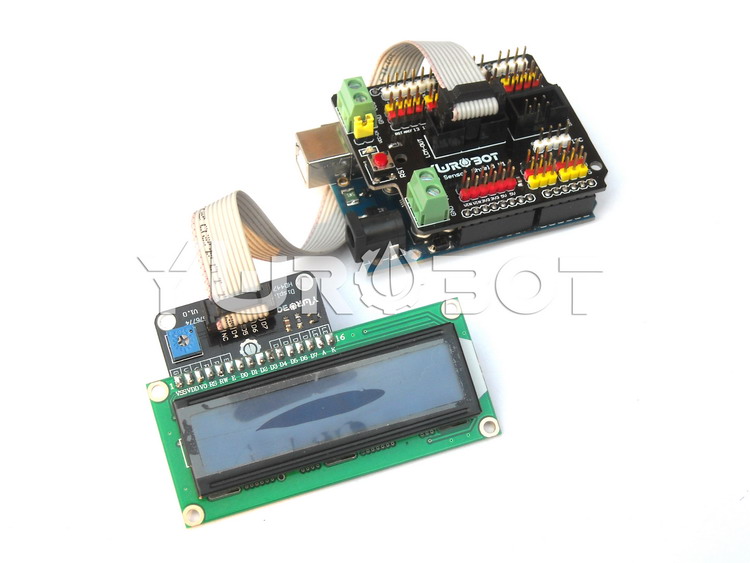

Plug in the Arduino UNO R3 effect, the interface is fully compatible with

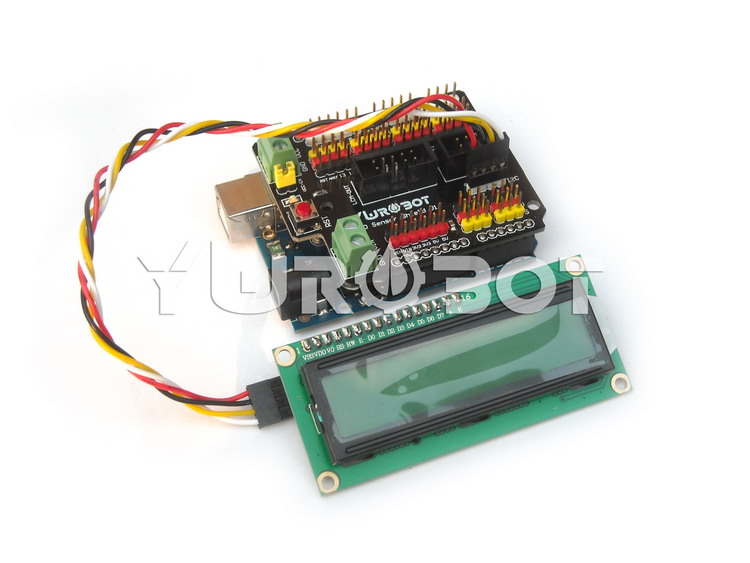

I2C interface can be easily connected to my shop LCD screen

10P parallel LCD interface simplifies wiring

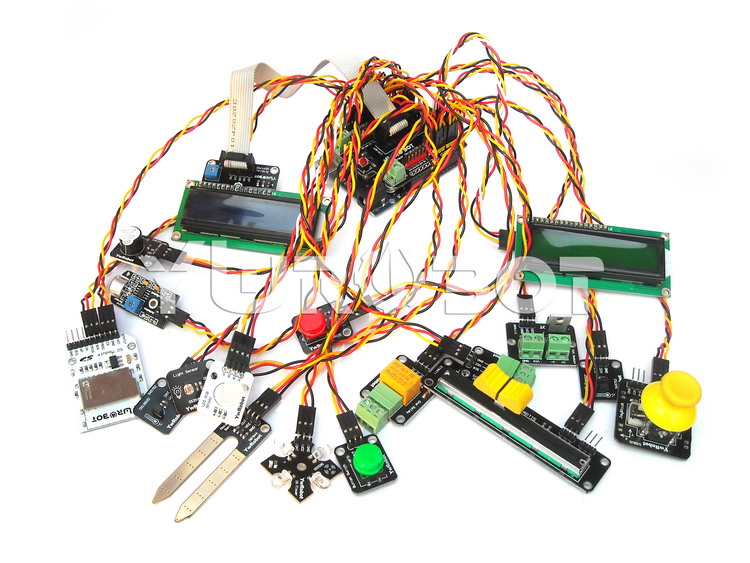

Multiple expansion mode, a variety of combinations, as you play!



Shipping List

  • Sensor expansion board IO Sensor Shield * 1
  • Principle (obtained from the owner after the electronic version, buy) Figure
  • Packing: anti-static packaging
