IO¼¾¼­½¯µåS IO Sensor Shield S [ARD050118]
Platform: Arduino UNO, MEGA or other compatible boards New color pin seat, yellow digital port, blue for the analog port, red for the power connector, for easy identification
ÆÇ¸Å°¡°Ý : 8,800¿ø
Àû¸³±Ý :90¿ø
»óǰ»óÅ :½Å»óǰ
Á¦Ç°ÄÚµå :1279498
Á¦Á¶»ç :YwRobot
ºê·£µå :YwRobot [ºê·£µå¹Ù·Î°¡±â]
Ãâ½ÃÀÏ :2018-06-11
±¸¸Å¼ö·® :
°³
ÃÑ ±Ý¾× :
MCUÀÌ¿ë ²ÜÆÁ

1,050¿ø
1,260¿ø
33,300¿ø
3,350¿ø
15,900¿ø
12,540¿ø
20,900¿ø
9,900¿ø
760¿ø
20,900¿ø
»ó¼¼Á¤º¸ ¹è¼Û/Ãë¼Ò/±³È¯¾È³» ÀÌ¿ëÈı⠻óǰQ&A

IO Sensor Shield S [ARD050118]

Product Overview

  • Name: Arduino sensor expansion board Thin
  • Item No: ARD050118
  • Manufacturing: YwRobot



Technical Parameters

  • IO Sensor Shield S
  • Size: 53 * 53mm
  • Platform: Arduino UNO, MEGA or other compatible boards
  • Port configuration is as follows:
  • 6 analog interface
  • 14 Digital Interface
  • 2 I2C interface (SDA, SCL)
  • A TTL serial port
  • External reset Interface
  • 3.3v, 5V Power Interface
  • Reset button



Product Feature

  • Fully compatible with Arduino UNO R3 interfaces

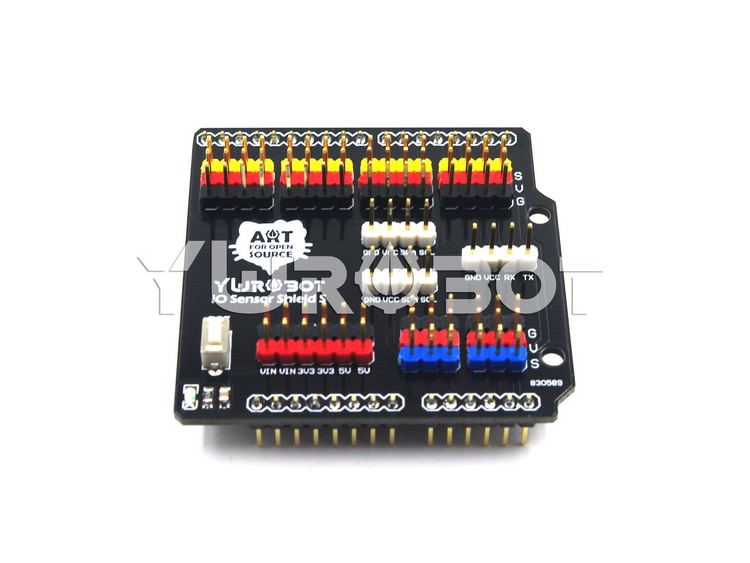

  • New color pin seat, yellow digital port, blue for the analog port, red for the power connector, for easy identification
  • All 3P and 3P Dupont interface corresponds to the color sensor cable compatible to prevent mismating
  • All gold-plated pins, sophisticated materials, electrical performance and stability
  • Excellent PCB design, elegant
  • I shop a variety of compatible electronic building blocks module, easy to use

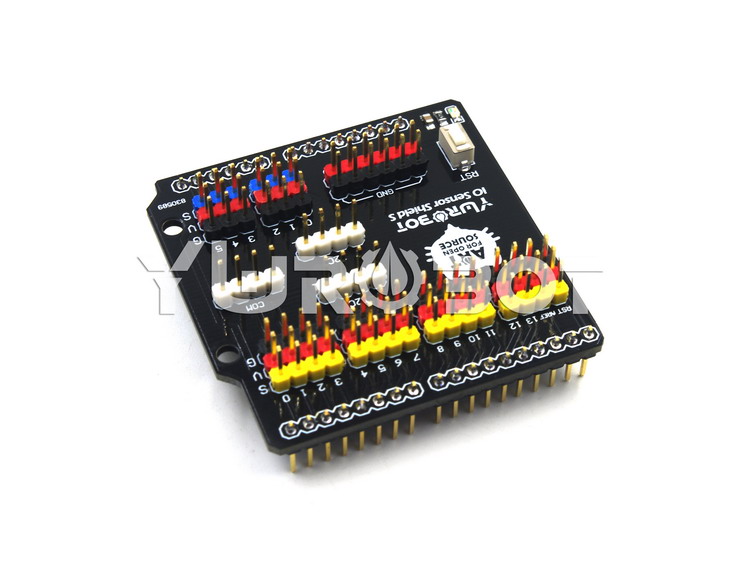

All gold-plated pins, sophisticated materials

3P connector pin color corresponding to the color sensor connection compatible for quick wiring

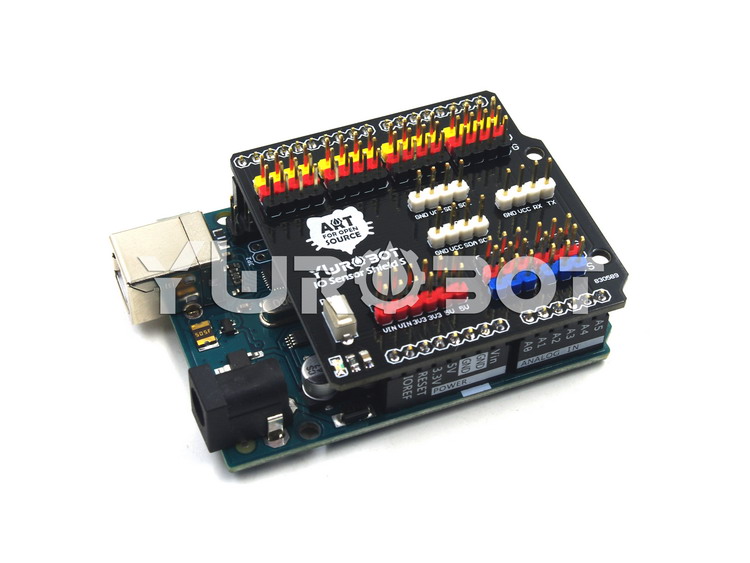

Plug in the Arduino UNO R3 effect, the interface is fully compatible with

Compatible YWRduino ONE

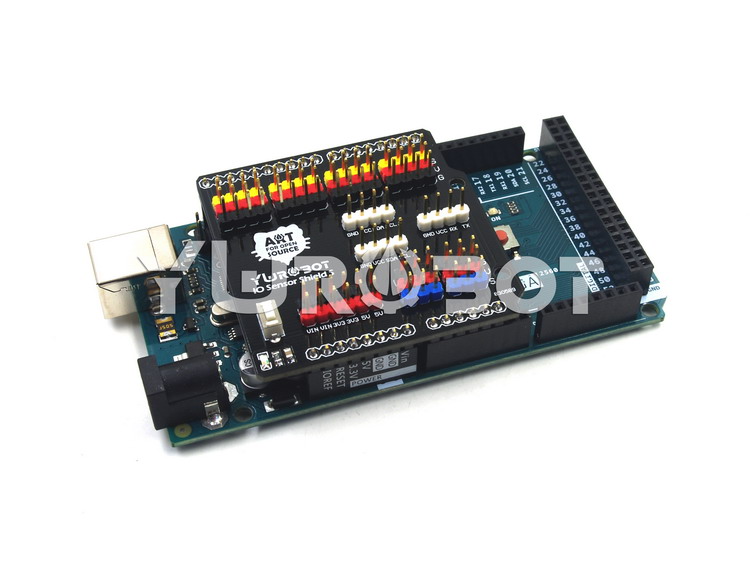

You can also use the extended portion of the interface with the MEGA

Multiple expansion mode, a variety of combinations, as you play!



Shipping List

  • Sensor expansion board IO Sensor Shield S * 1
  • Principle (obtained from the owner after the electronic version, buy) Figure
  • Packing: anti-static packaging
