Arduino MEGA Proto Shield V1 [ARD050116]

Product Overview

  • Name: Arduino MEGA Proto Shield V1 prototype expansion board containing a breadboard
  • Item No: ARD050116
  • Manufacturing: YwRobot
  • Price: 40 yuan / piece



Technical Parameters

  • MEGA Therefore Shield V1
  • Size: 108 * 56mm
  • Color: Black Gold plated pads
  • Platform: Arduino MEGA
  • Board resources as follows:
  • D13口LED
  • Reset button
  • LED * 4 red yellow blue (independent open interface)
  • Button * 4 (independent open interface)



Product Feature

  • Provide more convenient for the Arduino prototyping experimental platform at their disposal to build a simple test circuit
  • Onboard four LED and four touch buttons, simply connect the appropriate port to complete simple experiments
  • Full gold-plated pads, easily oxidized, beautiful and practical
  • Double-sided PCB Prototyping extended area vias connecting the front sides can be welded components
  • There is a patch on the back IO pads, easy fly line connection
  • New color pin seat for easy identification port function
  • The middle portion can be placed small bread plate, convenient test extended
  • Side-mounted reset button, the upper extension Shield does not affect the use of the reset button

There is a patch on the back IO pads, easy fly line connection

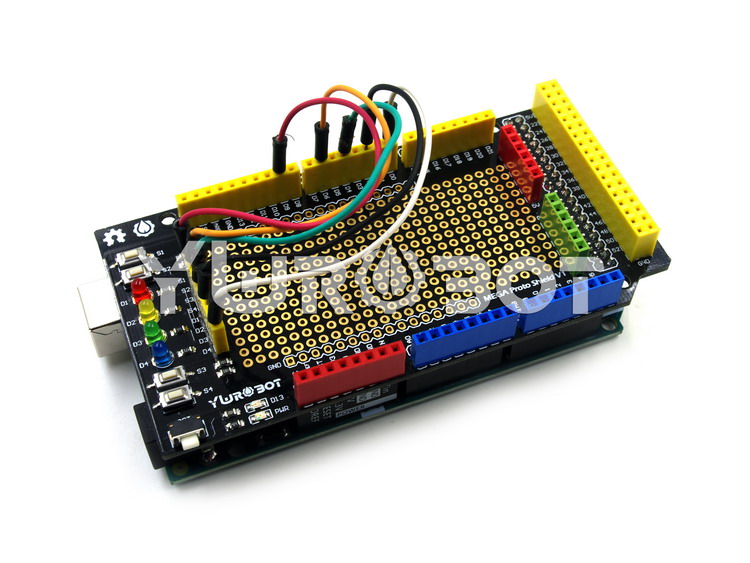

Easy to use and flexible board resources lap experiments (This product does not contain cable)

Easy to use and flexible board resources lap experiments (This product does not contain cable)

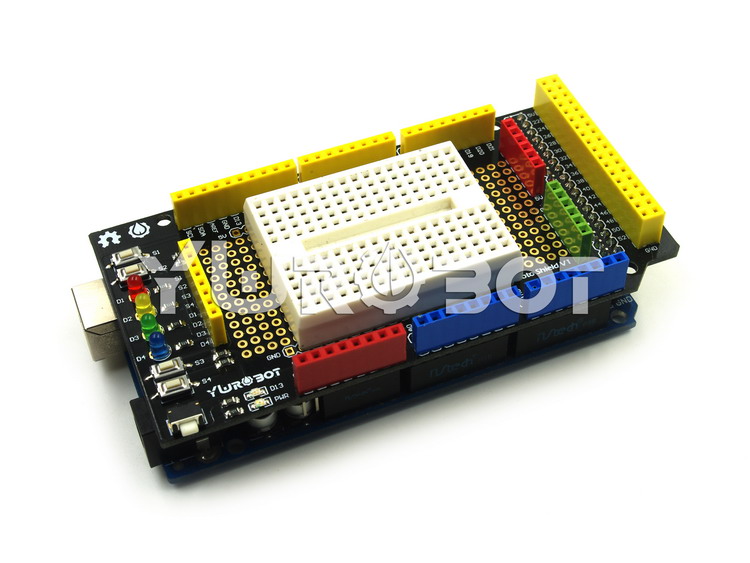

Use with bread board (this product does not contain MEGA)

Use with bread board (this product does not contain MEGA)

Easy to use and flexible board resources lap experiments
(This product does not contain MEGA and components, etc.)

Easy to use and flexible board resources lap experiments
(This product does not contain MEGA and components, etc.)



Shipping List

  • MEGA Proto Shield V1 prototype expansion board * 1
  • Mini Breadboard * 1
  • Packing: anti-static packaging
