마이크로비트 코딩교육용 인벤터 키트 [KIT-5603]
마이크로비트 교육용으로 적합한 키트 / LED, 모터, LDR 및 커패시터 사용을 포함하여 10가지 프로젝트를 완료하는데 필요한 모든것이 포함되어 있음 / 튜토리얼북(영문) 제공 / ※마이크로비트 보드 미포함
판매가격 : 38,940
적립금 :389
상품상태 :신상품
배송방법 :택배
제조사 :Kitronik
출시일 :2018-08-09
구매수량 :
총 금액 :
MCU이용 꿀팁

203,500원
54,800원
18,150원
37,400원
37,100원
29,590원
43,560원
50,600원
23,500원
90,100원
상세정보 배송/취소/교환안내 이용후기 상품Q&A
마이크로비트 코딩교육용 인벤터 키트 [KIT-5603]

Features

Please Note: BBC micro:bit is NOT included. You can buy the Kitronik Inventor's Kit with the BBC micro:bit already included here.

The Kitronik Inventor's Kit for the BBC micro:bit is a great way to get started with programming and hardware interaction with the BBC micro:bit. This Inventor's Kit contains everything you need to complete 10 experiments including using LEDs, motors, LDRs and capacitors.

To get you off to a flying start, we have included an easy to follow tutorial book which guides you through everything you will need to know about programming the BBC micro:bit. You don't need any experience with programming as the tutorial book will guide you every step of the way. You'll be programming and creating circuits in no time!

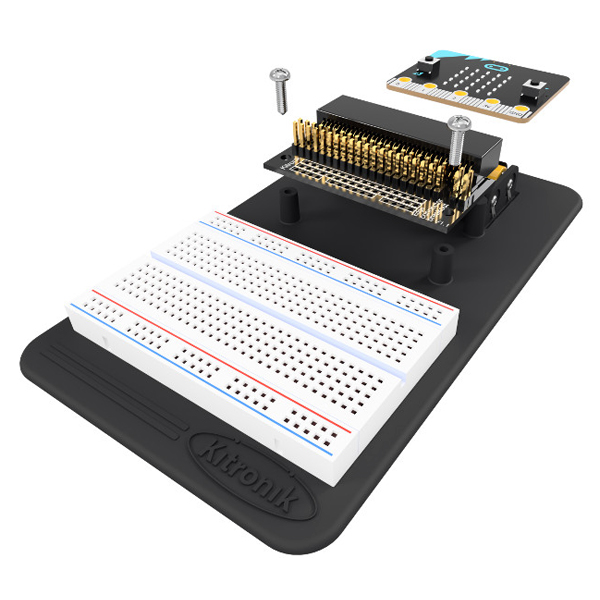

The Kitronik Inventor's Kit for the BBC micro:bit provides a fantastic way of learning how to construct and control electronic circuits. The BBC micro:bit has a selection of pins that are located on the bottom edge of its PCB (see datasheet below for details). By using our specially designed Edge Connector Board for the BBC micro:bit in conjunction with the breadboard (see below), it is easy to use these pins to connect additional components to the BBC micro:bit.

No soldering is required and you can build your first circuit in minutes!

Note:

  • This kit requires assembly.
  • This kit does not include a BBC microbit.
  • If you purchase a microbit separately you may also need to purchase a Battery Cage and a USB Cable, depending on which microbit option you purchase.
  • No soldering required - build your first circuit in minutes!
  • Make 10 experiments included in the provided step-by-step tutorial book.
  • All parts are included to conduct the 10 experiments (listed below).
  • Breaks out 21 accessible pins from the BBC micro:bit using the Edge Connector Board for the BBC micro:bit (included).
  • Small Prototype Breadboard included for fast prototyping.



Contents

1 x Mounting Plate.
1 x Potentiometer & Finger Adjust Spindle.
2 x Plastic Spacer 10mm.
1 x Sticky Fixer for Battery Pack.
1 x Small Prototype Breadboard.
1 x Terminal Connector.
4 x Push Switch.
1 x Motor.
1 x Transistor.
2 x Red 5mm LED.
2 x Orange 5mm LED.
2 x Yellow 5mm LED.
2 x Green 5mm LED.
1 x RGB 5mm LED.
1 x Fan Blade.
5 x 2.2KΩ Resistor.
5 x 10KΩ Resistor.
5 x 47Ω Resistor.
1 x Edge Connector Breakout Board for BBC micro:bit.
1 x Miniature LDR.
10 x Male to Male Jumper Wires.
10 x Male to Female Jumper Wires.
1 x 470uF Electrolytic Capacitor.
1 x Piezo Element Buzzer.
4 x Pan Head M3 Machine Screw.



Requires

1 x BBC micro:bit.
1 x Phillips Screwdriver.
1 x Terminal Block Screwdriver.
1 x Micro USB Cable.

All of the experiments included in this booklet (listed below) are based on the Microsoft BlockEditor and Microsoft TouchDevelop editor software. We have also produced a MicroPython code example for each of the experiments and Video resources featuring a walk-through and hints and tips to help you complete the experiments.

Inventors Kit Addtional Free Resources:

Exp No#.Experiment Name.Resource Type.
1Say Hello to the BBC micro:bit.Further Help.
2Using an LDR and analog inputs.Full Experiment + Further Help.
3Dimming an LED using a potentiometer.Further Help.
4Using a transistor to drive a motor.Full Experiment + Further Help.
5Using the accelerometer to control motor speed.Further Help.
6Setting the tone with a piezo buzzer.Further Help.
7Wind Power.Full Experiment + Further Help.
8Making a game using the compass.Further Help.
9Capacitor charge circuit.Further Help.
10Using an RGB LED.Further Help.
11Making a pedestrian crossing.Full Experiment + Further Help.
12Making a random dice.Full Experiment + Further Help.




※ 공급 제조사는 재고 사정에 따라 동일 사양의 대체상품으로 공급될 수 있습니다.
※ 상기 제품에 첨부된 데이타시트는 참고사항입니다.데이타시트에 표기된 내용에 대하여 본사는 어떠한 기술적인 문의 및 발생하는 문제에 대한 법적인 책임을 지지는 않습니다.
※ 사용자께서는 사용 전 반드시 제품에 대한 테스트 및 확인 절차 후 사용하시기 바랍니다
