SX18AC75(DP)
고속 50MIPS를 자랑한다. 초고속의 8BIT MCU , UBICOM의 마이컴
판매가격 : 4,320
적립금 :43
상품상태 :신상품
제품코드 :1058605
제조사 :UBICOM
출시일 :2018-02-07
구매수량 :
총 금액 :
MCU이용 꿀팁

5,400원
132,000원
1,620원
6,480원
13,800원
7,440원
4,920원
2,160원
28,800원
2,400원
상세정보 배송/취소/교환안내 이용후기 상품Q&A

SX18AC75(DP)

Features

  • 50 MIPS Performance
  • SX18AC/SX20AC/SX28AC: DC - 50 MHz operation
    SX18AC75/SX20AC75/SX28AC75: DC - 75 MHz
  • SX18AC/SX20AC/SX28AC: 20 ns instruction cycle, 60 ns internal interrupt response
    SX18AC75/SX20AC75/SX28AC75: 13.3 ns instruction cycle, 39.9 ns internal interrupt response
  • 1 instruction per clock (branches 3)
  • EE/FLASH Program Memory and SRAM Data Memory
  • Access time of < 10 ns provides single cycle access
  • EE/Flash rated for > 10,000 rewrite cycles
  • 2048 Words EE/Flash program memory
  • 136x8 bits SRAM data memory
  • CPU Features
  • Compact instruction set
  • All instructions are single cycle except branch
  • Eight-level push/pop hardware stack for subroutine linkage
  • Fast table lookup capability through run-time readable code (IREAD instruction)
  • Totally predictable program execution flow for hardreal-time applications
  • Fast and Deterministic Interrupt
  • Jitter-free 3-cycle internal interrupt response
  • Hardware context save/restore of key resources such as PC, W, STATUS, and FSR within the 3-cycle interrupt response time
  • External wakeup/interrupt capability on Port B (8 pins)
  • Flexible I/O
  • All pins individually programmable as I/O
  • Inputs are TTL or CMOS level selectable
  • All pins have selectable internal pull-ups
  • Selectable Schmitt Trigger inputs on Ports B, and C
  • All outputs capable of sourcing/sinking 30 mA
  • Port A outputs have symmetrical drive
  • Analog comparator support on Port B (RB0 OUT, RB1 IN-, RB2 IN+)
  • Selectable I/O operation synchronous to the oscillator clock
  • Hardware Peripheral Features
  • One 8-bit Real Time Clock/Counter (RTCC) with programable 8-bit prescaler
  • Watchdog Timer (shares the RTCC prescaler)
  • Analog comparator
  • Brown-out detector
  • Multi-Input Wakeup logic on 8 pins
  • Internal RC oscillator with configurable rate from 31.25 kHz to 4 MHz
  • Power-On-Reset
  • Programming and Debugging Support
  • On- chip in-system programming support with serial and parallel interfaces
  • In-system serial programming via oscillator pins
  • On-chip in-System debugging support logic
  • Real-time emulation, full program debug, and integrated development environment offered by third party tool vendors



Ordering Information

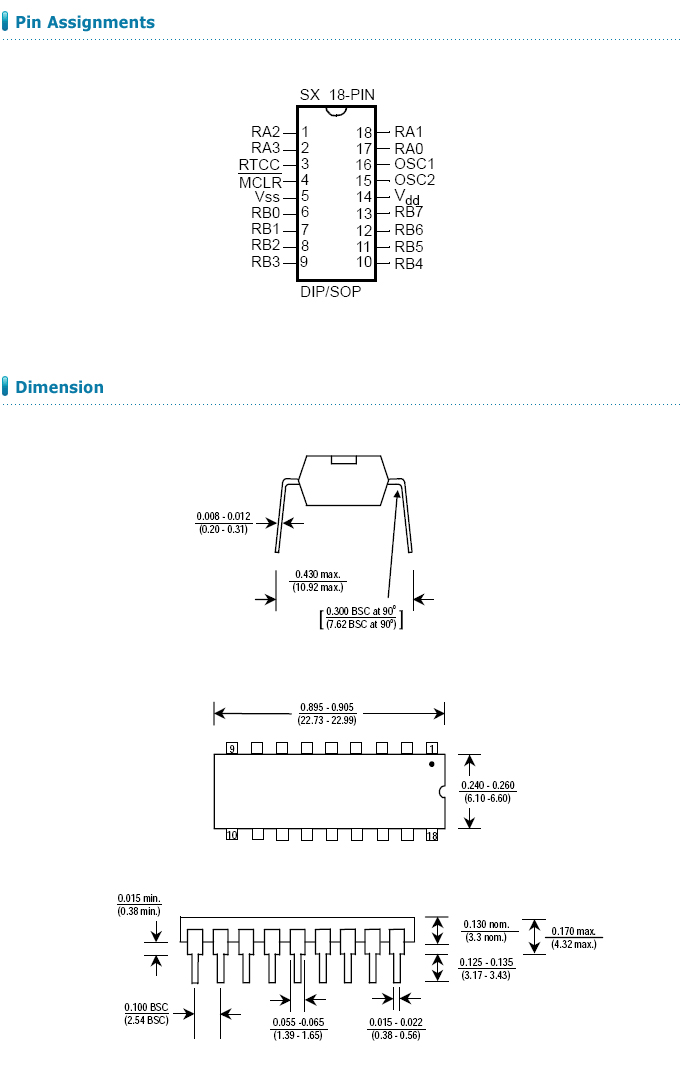

  • Package Type : 18-pin DIP
  • Operating Temperature Range : 0℃ to +70℃





※ 공급 제조사는 재고 사정에 따라 동일 사양의 대체상품으로 공급될 수 있습니다.
※ 상기 제품에 첨부된 데이타시트는 참고사항입니다.데이타시트에 표기된 내용에 대하여 본사는 어떠한 기술적인 문의 및 발생하는 문제에 대한 법적인 책임을 지지는 않습니다.
※ 사용자께서는 사용 전 반드시 제품에 대한 테스트 및 확인 절차 후 사용하시기 바랍니다
