PIC16F73-I/SP
28ÇÉ,20MHz,4KÇÁ·Î±×·¥¸Þ¸ð¸®,DIPŸÀÔ
ÆÇ¸Å°¡°Ý : 3,000¿ø
Àû¸³±Ý :30¿ø
»óǰ»óÅ :½Å»óǰ
Á¦Ç°ÄÚµå :1058590
Á¦Á¶»ç :MICROCHIP
Ãâ½ÃÀÏ :2018-02-07
±¸¸Å¼ö·® :
°³
ÃÑ ±Ý¾× :
MCUÀÌ¿ë ²ÜÆÁ

18,000¿ø
1,440¿ø
3,840¿ø
2,880¿ø
10,968¿ø
6,480¿ø
6,600¿ø
132,000¿ø
74,600¿ø
6,720¿ø
»ó¼¼Á¤º¸ ¹è¼Û/Ãë¼Ò/±³È¯¾È³» ÀÌ¿ëÈı⠻óǰQ&A

PIC16F73-I/SP

Features

  • Special Microcontroller Features
  • • Power-on Reset (POR)
    • Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
    • Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
    • Programmable code protection
    • Power saving SLEEP mode
    • Selectable oscillator options
    • In-Circuit Serial Programming¢â (ICSP¢â) via two pins


  • Peripheral Features
  • • Timer0: 8-bit timer/counter with 8-bit prescaler
    • Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock
    • Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
    • Two Capture, Compare, PWM modules
    - Capture is 16-bit, max. resolution is 12.5 ns
    - Compare is 16-bit, max. resolution is 200 ns
    - PWM max. resolution is 10-bit
    • 8-bit, up to 8-channel Analog-to-Digital converter
    • Synchronous Serial Port (SSP) with SPI¢â(Master mode) and I2C¢â(Slave)
    • Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI)
    • Parallel Slave Port (PSP), 8-bits wide with external RD, WR and CS controls (40/44-pin only)
    • Brown-out detection circuitry for Brown-out Reset (BOR)

  • CMOS Technology
  • • Low power, high speed CMOS FLASH technology
    • Fully static design
    • Wide operating voltage range: 2.0V to 5.5V
    • High Sink/Source Current: 25 mA
    • Industrial temperature range
    • Low power consumption:
    - < 2 mA typical @ 5V, 4 MHz
    - 20 ¥ìA typical @ 3V, 32 kHz
    - < 1 ¥ìA typical standby current



Ordering Information

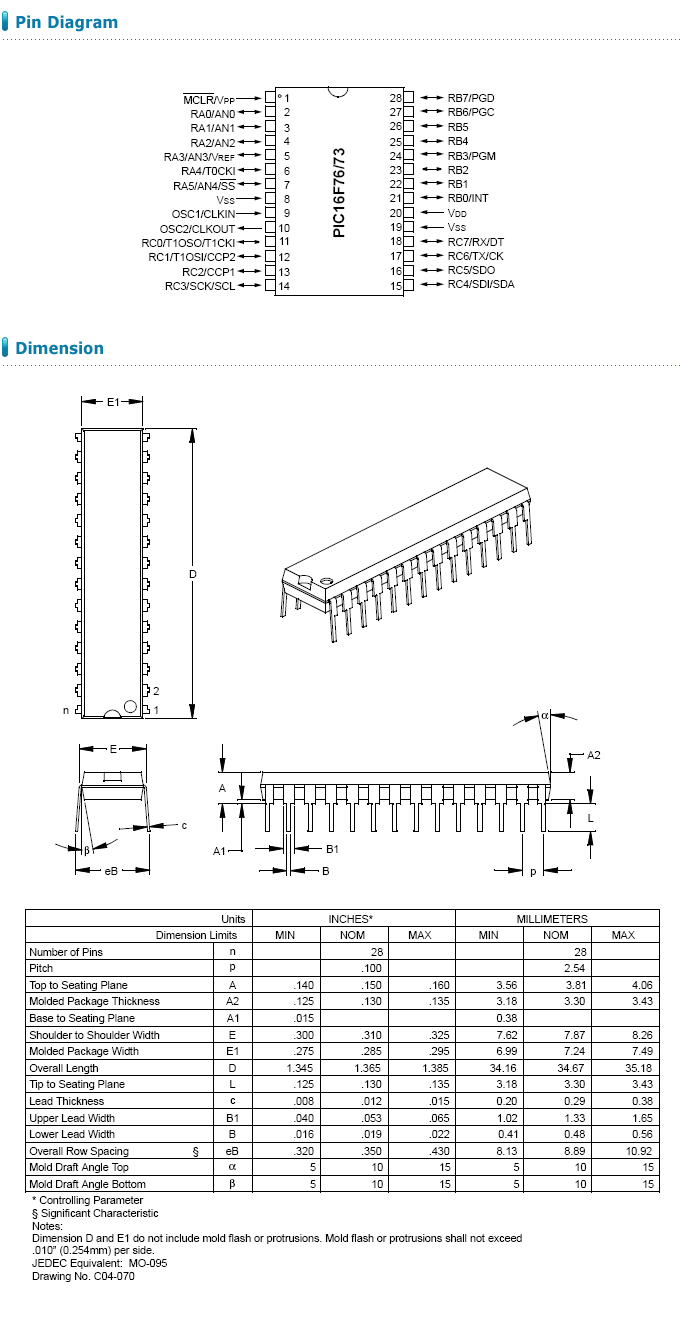

  • Package Type : 28-Lead PDIP
  • Operating temperature : -40¡É ¡Â TA ¡Â +85¡É for industrial





¡Ø °ø±Þ Á¦Á¶»ç´Â Àç°í »çÁ¤¿¡ µû¶ó µ¿ÀÏ »ç¾çÀÇ ´ëü»óǰÀ¸·Î °ø±ÞµÉ ¼ö ÀÖ½À´Ï´Ù.
¡Ø »ó±â Á¦Ç°¿¡ ÷ºÎµÈ µ¥ÀÌŸ½ÃÆ®´Â Âü°í»çÇ×ÀÔ´Ï´Ù.µ¥ÀÌŸ½ÃÆ®¿¡ Ç¥±âµÈ ³»¿ë¿¡ ´ëÇÏ¿© º»»ç´Â ¾î¶°ÇÑ ±â¼úÀûÀÎ ¹®ÀÇ ¹× ¹ß»ýÇÏ´Â ¹®Á¦¿¡ ´ëÇÑ ¹ýÀûÀΠåÀÓÀ» ÁöÁö´Â ¾Ê½À´Ï´Ù.
¡Ø »ç¿ëÀÚ²²¼­´Â »ç¿ë Àü ¹Ýµå½Ã Á¦Ç°¿¡ ´ëÇÑ Å×½ºÆ® ¹× È®ÀÎ ÀýÂ÷ ÈÄ »ç¿ëÇϽñ⠹ٶø´Ï´Ù
