PIC16F877A-I/P
40핀,20MHz,8K프로그램메모리,DIP타입
판매가격 : 4,080
적립금 :41
상품상태 :신상품
제품코드 :1058585
제조사 :MICROCHIP
출시일 :2018-02-07
구매수량 :
총 금액 :
MCU이용 꿀팁

1,440원
6,960원
17,400원
1,680원
13,200원
960원
13,440원
54,000원
17,250원
9,480원
상세정보 배송/취소/교환안내 이용후기 상품Q&A

PIC16F877A-I/P

Features

  • Peripheral Features
    • Timer0: 8-bit timer/counter with 8-bit prescaler
    • Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock
    • Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
    • Two Capture, Compare, PWM modules
    - Capture is 16-bit, max. resolution is 12.5 ns
    - Compare is 16-bit, max. resolution is 200 ns
    - PWM max. resolution is 10-bit
    • Synchronous Serial Port (SSP) with SPI™ (Master mode) and I²C™ (Master/Slave)
    • Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address detection
    • Parallel Slave Port (PSP), 8-bits wide, with external RD, WR and CS controls (40/44-pin only)
    • Brown-out detection circuitry for Brown-out Reset (BOR)

  • Analog Features
    • 10-bit, up to 8 channel Analog-to-Digital Converter (A/D)
    • Brown-out Reset (BOR)
    • Analog Comparator module with:
    - Two analog comparators
    - Programmable on-chip voltage reference(VREF) module
    - Programmable input multiplexing from decive inputs and intermal voltage reference
    - Comparator outputs are externally accessible

  • Special Microcontroller Features
    • 100,000 erase/write cycle Enhanced FLASH program memory typical
    • 100,000 erase/write cycle Data EEPROM memory typical
    • Data EEPROM Retention > 40 years
    • Self-reprogrammable under software control
    • In-Circuit Serial Programming™ (ICSP™) via two pins
    • Single supply 5V In-Circuit Serial Programming
    • Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
    • Programmable code portecion
    • Power saving SLEEP mode
    • Selectable oscillator options
    • In-Circuit Debug (ICD) via tow pins

  • CMOS Technology
    • Low power, high speed FLASH/EEPROM technology
    • Fully static design
    • Wide operating voltage range(2.0V to 5.5V)
    • Commercial and Industrial temperature range
    • Low power consumption



Ordering Information

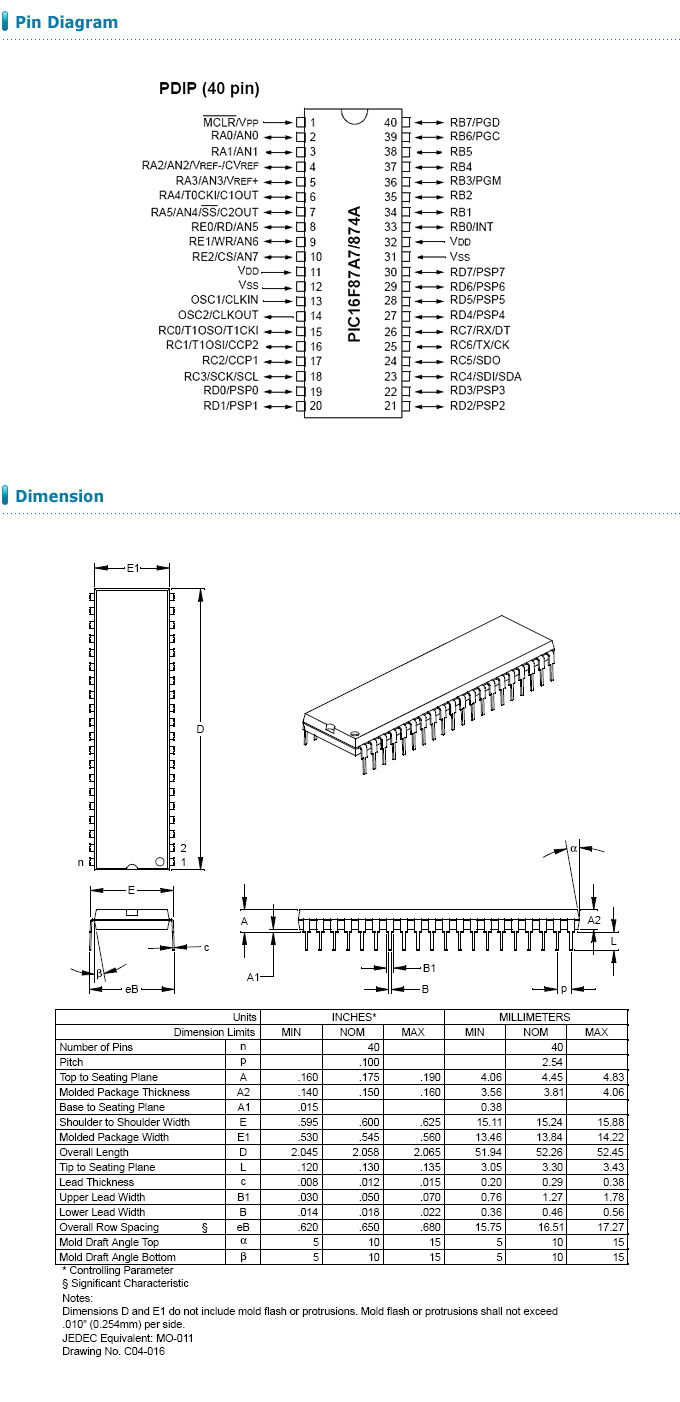

  • Package Type : 40-Lead PDIP
  • Operating temperature : -40℃ ≤ TA ≤ +85℃ for industrial



※ 공급 제조사는 재고 사정에 따라 동일 사양의 대체상품으로 공급될 수 있습니다.
※ 상기 제품에 첨부된 데이타시트는 참고사항입니다.데이타시트에 표기된 내용에 대하여 본사는 어떠한 기술적인 문의 및 발생하는 문제에 대한 법적인 책임을 지지는 않습니다.
※ 사용자께서는 사용 전 반드시 제품에 대한 테스트 및 확인 절차 후 사용하시기 바랍니다
