AVR ATMEGA8L-8PU
8K메모리,SPI,ADC,EEPROM,DIP타입
판매가격 : 5,400
적립금 :54
상품상태 :신상품
제품코드 :1058577
제조사 :ATMEL
출시일 :2018-02-07
구매수량 :
총 금액 :
MCU이용 꿀팁

12,600원
13,800원
5,400원
16,800원
1,680원
13,200원
54,000원
1,800원
3,360원
6,960원
상세정보 배송/취소/교환안내 이용후기 상품Q&A
ATMEGA8L-8PU

Features

  • High-performance, Low-power AVR 8-bit Microcontroller
  • Advanced RISC Architecture
    – 130 Powerful Instructions – Most Single-clock Cycle Execution
    – 32 x 8 General Purpose Working Registers
    – Fully Static Operation
    – Up to 16 MIPS Throughput at 16 MHz
    – On-chip 2-cycle Multiplier
  • Nonvolatile Program and Data Memories
    – 8K Bytes of In-System Self-Programmable Flash Endurance: 10,000 Write/Erase Cycles
    – Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot Program True Read-While-Write Operation
    – 512 Bytes EEPROM Endurance: 100,000 Write/Erase Cycles
    – 1K Byte Internal SRAM
    – Programming Lock for Software Security
  • Peripheral Features
    – Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode
    – One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
    – Real Time Counter with Separate Oscillator
    – Three PWM Channels
    – 8-channel ADC in TQFP and MLF package Six Channels 10-bit Accuracy Two Channels 8-bit Accuracy
    – 6-channel ADC in PDIP package Four Channels 10-bit Accuracy Two Channels 8-bit Accuracy
    – Byte-oriented Two-wire Serial Interface
    – Programmable Serial USART
    – Master/Slave SPI Serial Interface
    – Programmable Watchdog Timer with Separate On-chip Oscillator
    – On-chip Analog Comparator
  • Special Microcontroller Features
    – Power-on Reset and Programmable Brown-out Detection
    – Internal Calibrated RC Oscillator
    – External and Internal Interrupt Sources
    – Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby
  • I/O and Packages
    – 23 Programmable I/O Lines

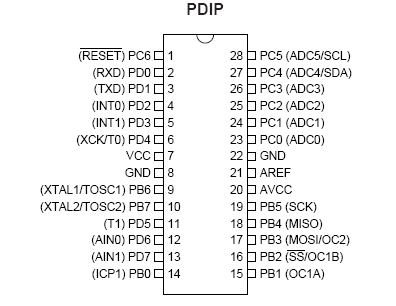

    – 28-lead PDIP, 32-lead TQFP, and 32-pad MLF
  • Operating Voltages
    – 2.7 - 5.5V (ATmega8L)
    – 4.5 - 5.5V (ATmega8)
  • Speed Grades
    – 0 - 8 MHz (ATmega8L)
    – 0 - 16 MHz (ATmega8)
  • Power Consumption at 4 Mhz, 3V, 25°C
    – Active: 3.6 mA
    – Idle Mode: 1.0 mA
    – Power-down Mode: 0.5 μA



Ordering Information

  • Pacakage : 28-pin, DIP
  • Operation Range : Industrial(-40°C to 85°C)





※ 공급 제조사는 재고 사정에 따라 동일 사양의 대체상품으로 공급될 수 있습니다.
※ 상기 제품에 첨부된 데이타시트는 참고사항입니다.데이타시트에 표기된 내용에 대하여 본사는 어떠한 기술적인 문의 및 발생하는 문제에 대한 법적인 책임을 지지는 않습니다.
※ 사용자께서는 사용 전 반드시 제품에 대한 테스트 및 확인 절차 후 사용하시기 바랍니다
