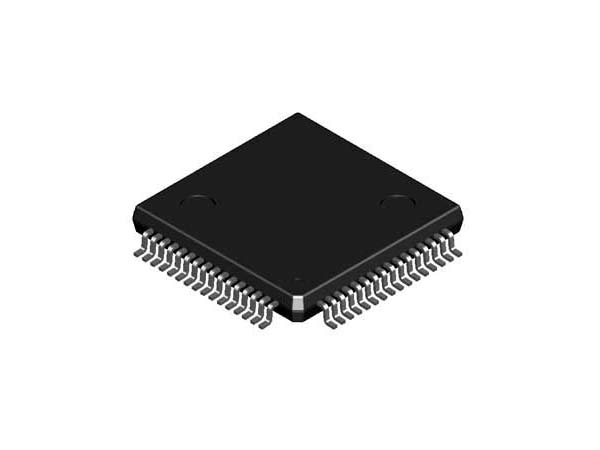

AVR ATMEGA64-16AU
64K 프로그램 메모리, ATmega128과 핀2핀, EEPROM, UART 2개
판매가격 : 8,160
적립금 :82
상품상태 :신상품
제품코드 :1058547
제조사 :ATMEL
출시일 :2018-02-07
구매수량 :
총 금액 :
MCU이용 꿀팁

12,600원
2,880원
1,440원
3,360원
10,968원
7,440원
3,000원
2,280원
1,260원
9,480원
상세정보 배송/취소/교환안내 이용후기 상품Q&A
ATMEGA64-16AU

FEATURES

  • High-performance, Low-power AVR 8-bit Microcontroller
  • Advanced RISC Architecture
    – 130 Powerful Instructions – Most Single Clock Cycle Execution
    – 32 x 8 General Purpose Working Registers + Peripheral Control Registers
    – Fully Static Operation
    – Up to 16 MIPS Throughput at 16 MHz
    – On-chip 2-cycle Multiplier
  • Non-volatile Program and Data Memories
    – 64K Bytes of In-System Reprogrammable Flash Endurance: 10,000 Write/Erase Cycles
  • – Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot Program True Read-While-Write Operation
    – 2K Bytes EEPROM Endurance: 100,000 Write/Erase Cycles
    – 4K Bytes Internal SRAM
    – Up to 64K Bytes Optional External Memory Space
    – Programming Lock for Software Security
    – SPI Interface for In-System Programming
  • JTAG (IEEE std. 1149.1 Compliant) Interface
    – Boundary-scan Capabilities According to the JTAG Standard
    – Extensive On-chip Debug Support
    – Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
  • Peripheral Features
    – Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
    – Two Expanded 16-bit Timer/Counters with Separate Prescaler, Compare Mode, and Capture Mode
    – Real Time Counter with Separate Oscillator
    – Two 8-bit PWM Channels
    – 6 PWM Channels with Programmable Resolution from 1 to 16 Bits
    – 8-channel, 10-bit ADC 8 Single-ended Channels 7 Differential Channels 2 Differential Channels with Programmable Gain (1x, 10x, 200x)
    – Byte-oriented Two-wire Serial Interface
    – Dual Programmable Serial USARTs
    – Master/Slave SPI Serial Interface
    – Programmable Watchdog Timer with On-chip Oscillator
    – On-chip Analog Comparator
  • Special Microcontroller Features
    – Power-on Reset and Programmable Brown-out Detection
    – Internal Calibrated RC Oscillator
    – External and Internal Interrupt Sources
    – Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby
    – Software Selectable Clock Frequency
    – ATmega103 Compatibility Mode Selected by a Fuse
    – Global Pull-up Disable

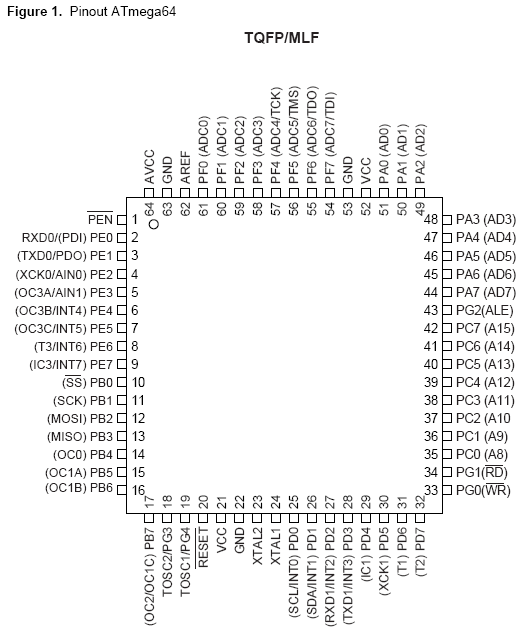

  • I/O and Packages
    – 53 Programmable I/O Lines
    – 64-lead TQFP and 64-pad MLF
  • Operating Voltages
    – 2.7 - 5.5V for ATmega64L
    – 4.5 - 5.5V for ATmega64
  • Speed Grades
    – 0 - 8 MHz for ATmega64L
    – 0 - 16 MHz for ATmega64



Ordering Information

  • Pacakage : 64-pin, TQFP
  • Operation Range : Industrial(-40°C to 85°C)





※ 공급 제조사는 재고 사정에 따라 동일 사양의 대체상품으로 공급될 수 있습니다.
※ 상기 제품에 첨부된 데이타시트는 참고사항입니다.데이타시트에 표기된 내용에 대하여 본사는 어떠한 기술적인 문의 및 발생하는 문제에 대한 법적인 책임을 지지는 않습니다.
※ 사용자께서는 사용 전 반드시 제품에 대한 테스트 및 확인 절차 후 사용하시기 바랍니다
