A290021UL-70 | |  | FEATURES | | | - 5.0V ¡¾ 10% for read and write operations
- Access times:
- 55/70/90/120/150 (max.) - Current:
- 20 mA typical active read current - 30 mA typical program/erase current - 1 mA typical CMOS standby - Flexible sector architecture
- 16 Kbyte/ 8 KbyteX2/ 32 Kbyte/ 64 KbyteX3 sectors - Any combination of sectors can be erased - Supports full chip erase - Sector protection: A hardware method of protecting sectors to prevent any inadvertent program or erase operations within that sector - Top or bottom boot block configurations available
- Embedded Erase Algorithms
- Embedded Erase algorithm will automatically erase the entire chip or any combination of designated sectors and verify the erased sectors - Embedded Program algorithm automatically writes and verifies bytes at specified addresses - Typical 100,000 program/erase cycles per sector
- 20-year data retention at 125¡ÆC
- Reliable operation for the life of the system - Compatible with JEDEC-standards
- Pinout and software compatible with single-powersupply Flash memory standard - Superior inadvertent write protection - Data Polling and toggle bits
- Provides a software method of detecting completion of program or erase operations - Erase Suspend/Erase Resume
- Suspends a sector erase operation to read data from, or program data to, a non-erasing sector, then resumes the erase operation - Hardware reset pin (RESET )
- Hardware method to reset the device to reading array data (not available on A290021) - Package options

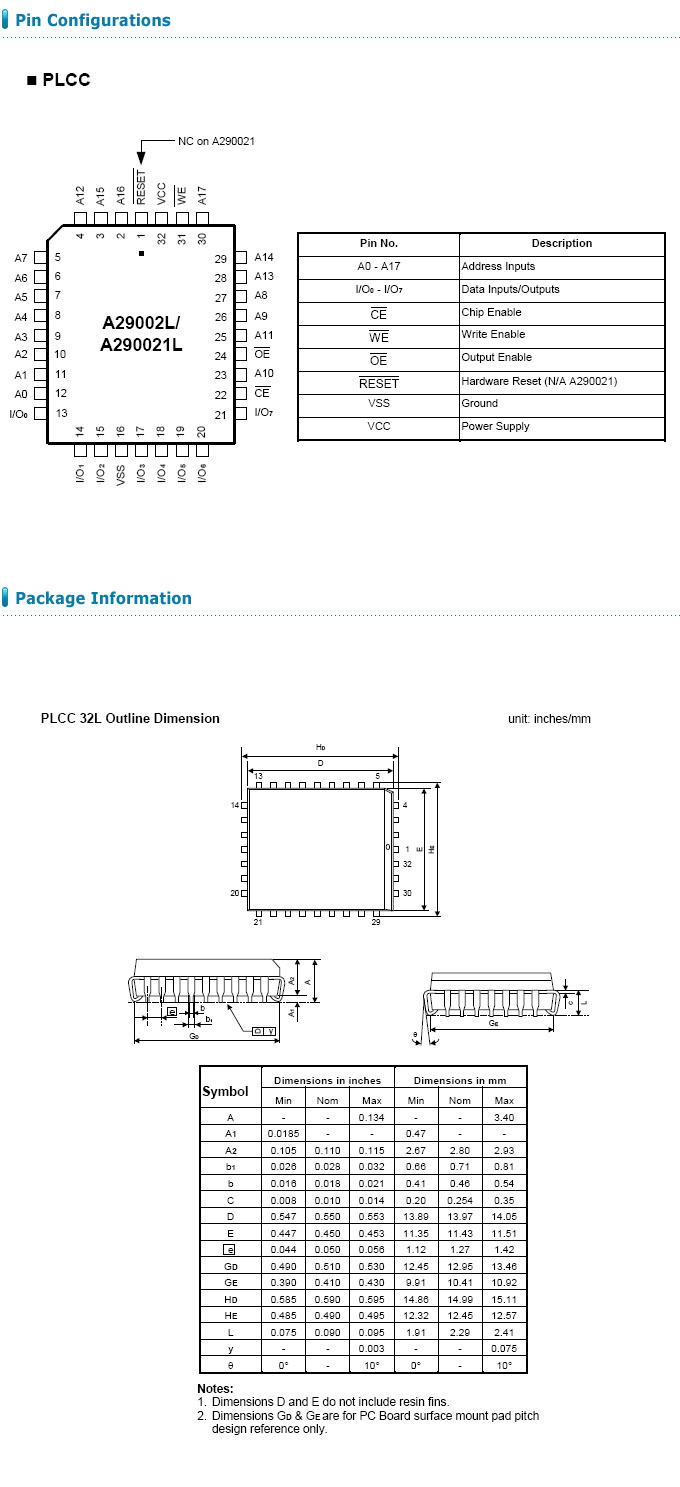

- 32-pin P-DIP, PLCC, or TSOP (Forward type) |  | Ordering Information | | | |
 |
