Cmod A7: Breadboardable Artix-7 FPGA Module A35T

Overview

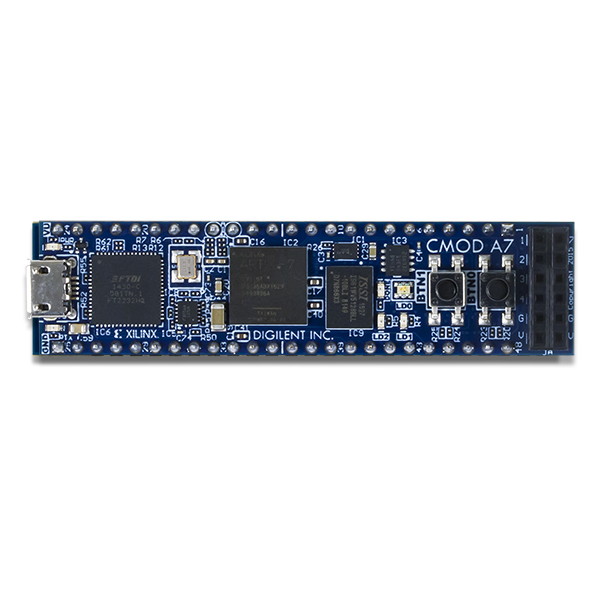

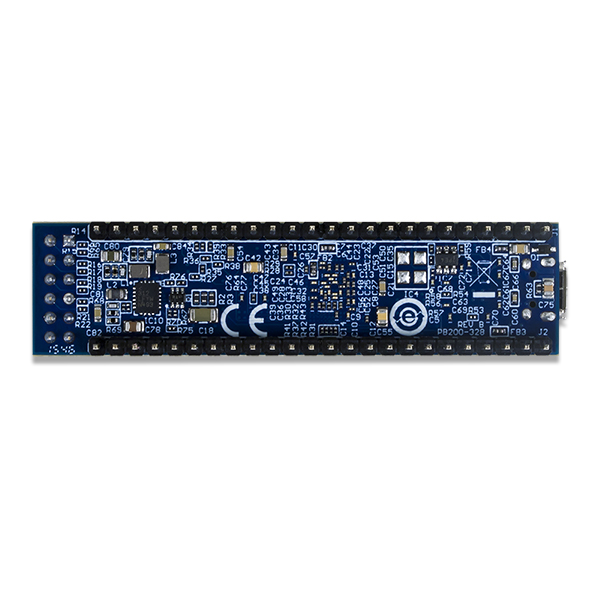

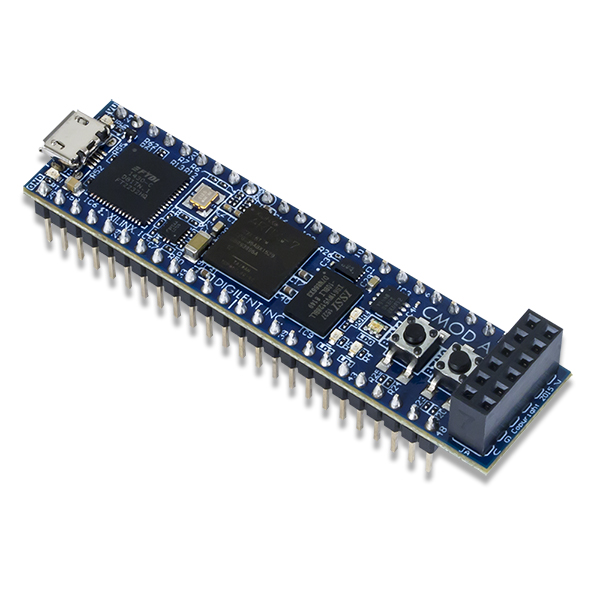

  • The Digilent Cmod A7 is a small, breadboard friendly 48-pin DIP form factor board built around a Xilinx Artix-7 FPGA. The board also includes a USB-JTAG programming circuit, USB-UART bridge, clock source, Pmod host connector, SRAM, Quad-SPI Flash, and basic I/O devices. These components make it a formidable, albeit compact, platform for digital logic circuits and MicroBlaze embedded soft-core processor designs using Xilinx's development software, Vivado. There are 44 Digital FPGA I/O signals and two FPGA Analog inputs that are routed to 100-mil-spaced through-hole pins so that you can integrate your programmable logic design directly into a solderless breadboard circuit. At just 0.7¡± by 2.75¡±, it can also be loaded in a standard socket and used in embedded systems.




    Note:

    The only difference between the Cmod A7-15T and Cmod A7-35T are the capabilities of the FPGA found on the board. They compare as follows:



    Cmod A7-15T
    Cmod A7-35T
    FPGA part XC7A15T-1CPG236C XC7A35T-1CPG236C
    1 MSPS On-chip ADC Yes Yes
    Programming options Quad-SPI Flash/JTAG Quad-SPI Flash/JTAG
    Look-up Tables (LUTs) 10,400 20,800
    Flip-flops 20,800 41,600
    Block RAM 112.5 KB 225 KB
    Clock Management Tiles 5 5



Features

  • System Features
    • 512KB SRAM with an 8-bit bus and 8ns access times
    • 4MB Quad-SPI Flash
    • USB-JTAG Programming Circuitry
    • Powered from USB or external 3.3-5.5V supply connected to DIP pins
  • System Connectivity
    • USB-UART bridge
  • Interaction and Sensory Devices
    • 2 LEDs
    • 1 RGB LED
    • 2 Push Buttons
  • Expansion Connectors
    • 48-pin DIP connector with 44 Digital I/O and 2 Analog inputs (0-3.3V)
    • One Pmod connector with 8 Digital I/O
