Adafruit Pi Unassembled T-Cobbler Breakout Kit for Raspberry Pi [ada-1105]
Raspberry Pi Model B Revision 1 or Revision 2 전용 제품입니다. Raspberry Pi 2 or Model A+ or B+ 에는 호환되지 않습니다.
판매가격 : 8,710
적립금 :87
상품상태 :신상품
제품코드 :1265496
제조사 :adafruit
브랜드 :아다프루트 [브랜드바로가기]
출시일 :2018-02-07
구매수량 :
총 금액 :
MCU이용 꿀팁

40,000원
8,470원
15,200원
51,500원
16,500원
10,560원
18,700원
6,600원
15,000원
58,850원
상세정보 배송/취소/교환안내 이용후기 상품Q&A




Adafruit Pi Unassembled T-Cobbler Breakout Kit for Raspberry Pi
[ada-1105]

Description

  • Now that you've finally got your hands on a Raspberry Pi® , you're probably itching to make some fun embedded computer projects with it. What you need is an add on prototyping Pi T-Cobbler from Adafruit, which can break out all those tasty power, GPIO, I2C and SPI pins from the 26 pin header onto a solderless breadboard. This mini kit will make "cobbling together" prototypes with the Pi super easy. Designed for Raspberry Pi Model B Revision 1 or Revision 2.

    This Cobbler is in a fancy T-shape, which is not as compact, but is a little easier to read the labels. We also have the more compact original Cobbler.

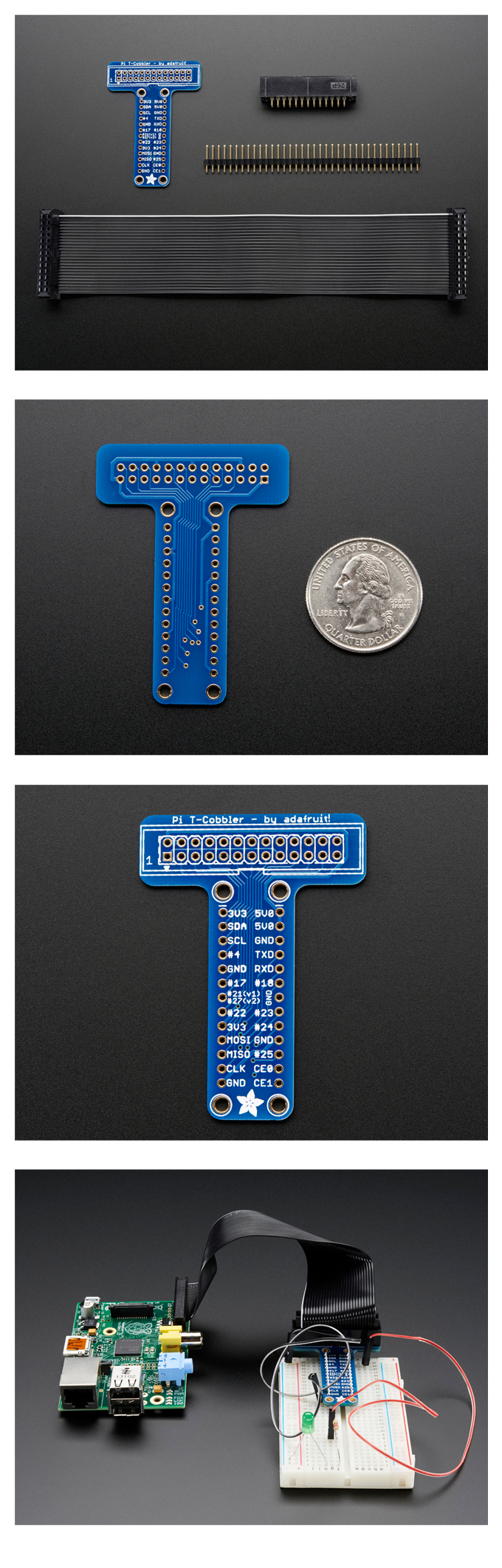

    The Pi T-Cobbler mini kit comes with a 26 pin ribbon cable, a custom PCB, ribbon cable socket and header pins. A little soldering is required to put it together but its really easy, even a beginner can do it in 15 minutes so please click to read the tutorial For plug-and-play fans, We also have an assembled version here.

    Once soldered together, the cable plugs between the Pi computer and the T-Cobbler breakout. The T-Cobbler can plug into any solderless breadboard (or even a prototyping board like the PermaProto). The T-Cobbler PCB has all the pins labeled nicely so you can go forth and build circuits without keeping a pin-out printout at your desk. We think this will make it more fun to expand the Pi and build custom circuitry with it.

    The Adafruit Pi T-Cobbler is compatible with Model A and Model B both versions 1 and 2 of the Raspberry Pi Computer - for version 2 computers, note that the GPIO #21 has been replaced with GPIO #27 and that the I2C pins are now I2C port #1 instead of #0. All other pins are the same. This Cobbler is not compatible with the Model B+ unless you have a GPIO downgrade cable

    Please note, this kit only contains a 26 pin ribbon cable, a custom PCB, ribbon cable socket and header pins. A Raspberry Pi, breadboard, breadboarding wires, cables, components,case, power supply, etc is not included! We do stock many of those items in the shop, so check those out as well!


  • What is the Raspberry Pi® ? A low-cost ARM GNU/Linux box.
    The Raspberry Pi® is a single-board computer developed in the UK by the Raspberry Pi Foundation with the intention of stimulating the teaching of basic computer science in schools. The design is based on a Broadcom BCM2835 system on a chip (SoC), which includes an ARM1176JZF-S 700 MHz processor, VideoCore IV GPU, and 256 megabytes of RAM. The design does not include a built-in hard disk or solid-state drive, instead relying on an SD card for booting and long-term storage. The Foundation plans to support Fedora Linux as the initial system software package/distribution, with support for Debian and Arch Linux as well - Wikipedia.



    Raspberry Pi® is a trademark of the Raspberry Pi Foundation.





Technical Details

  • Ribbon Cable Dimensions:
    • 173mm x 33mm / 6.8" x 1.3"
    • Weight: 14.4g


  • Pi T-Cobbler (after assembled) Dimensions:
    • 55mm x 15mm x 11mm / 2.2" x 0.6" x 0.4"
    • Width of T: 40mm / 1.6"
    • Weight: 8.5g







※ 공급 제조사는 재고 사정에 따라 동일 사양의 대체상품으로 공급될 수 있습니다.
※ 상기 제품에 첨부된 데이타시트는 참고사항입니다.데이타시트에 표기된 내용에 대하여 본사는 어떠한 기술적인 문의 및 발생하는 문제에 대한 법적인 책임을 지지는 않습니다.
※ 사용자께서는 사용 전 반드시 제품에 대한 테스트 및 확인 절차 후 사용하시기 바랍니다
