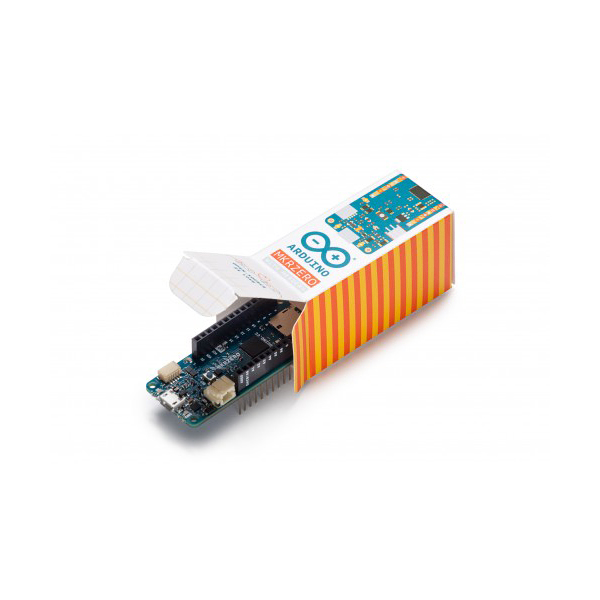

정품 Arduino MKR ZERO 오디오작업용 아두이노 당일발송 한정판매
Code: ABX00012 / 32비트 응용 프로그램 개발에 최적인 보드 / 별도의 하드웨어 없이 음악 파일로 재생가능한 전용 SPI 인터페이스 (SPI1)가 내장된 온보드 SD 커넥터 / SAMD21 Cortex-M0 + 32 비트 저전력 ARM MCU / 최대 전압: 3.3V / micro-USB 케이블 연결
판매가격 : 39,600
적립금 :396
상품상태 :신상품
제품코드 :1360942
제조사 :Arduino
브랜드 :아두이노 [브랜드바로가기]
출시일 :2018-02-07
구매수량 :
총 금액 :

39,600원
6,490원
44,000원
36,300원
79,200원
4,900원
14,300원
37,620원
25,410원
23,100원
상세정보 배송/취소/교환안내 이용후기 상품Q&A

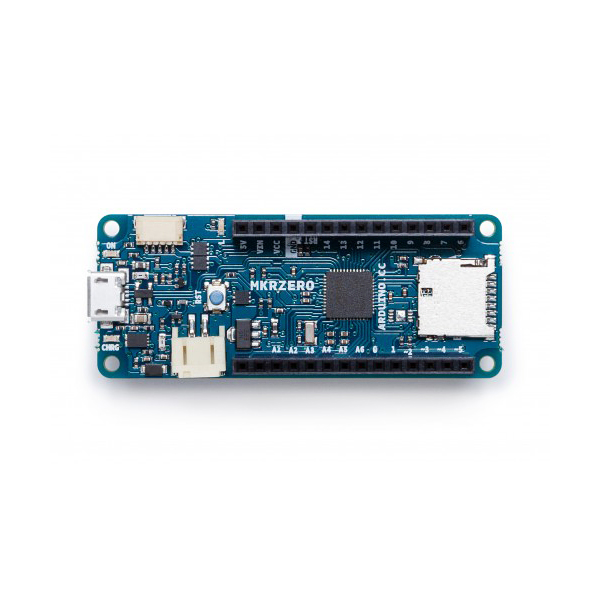

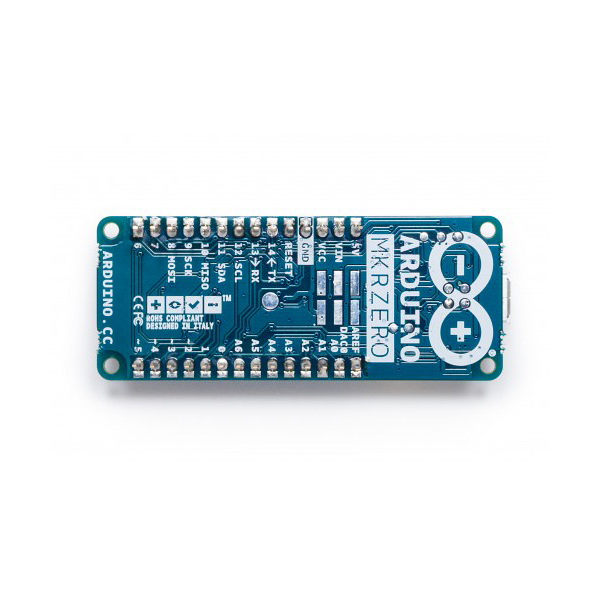

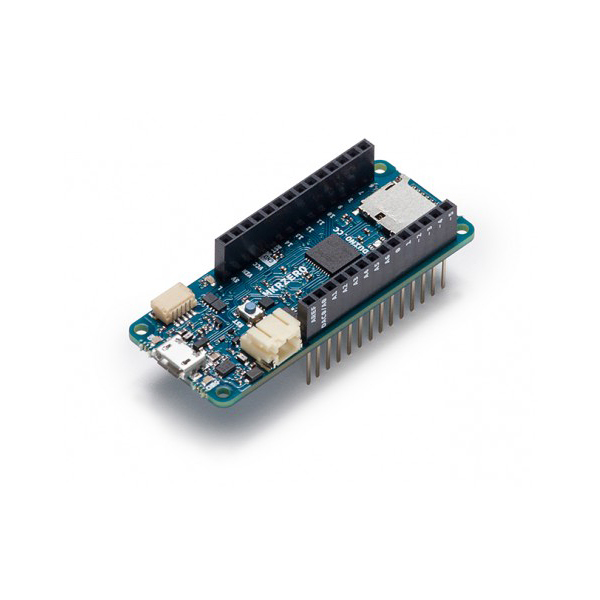

Arduino MKR ZERO

OVERVIEW

  • The MKR ZERO brings you the power of a Zero in the smaller format established by the MKR form factor. The MKR ZERO board acts as a great educational tool for learning about 32-bit application development. It has an on-board SD connector with dedicated SPI interfaces (SPI1) that allows you to play with MUSIC files with no extra hardware!  The board is powered by Atmel’s SAMD21 MCU, which features a 32-bit ARM Cortex® M0+ core. Warning: Unlike most Arduino & Genuino boards, the MKRZero runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board. The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it by a LiPo battery. The battery voltage can also be monitored since a connection between the battery and the analog converter of the board exists. You can find here your board warranty informations.
  • Getting Started In the Getting Started section, you can find all the information you need to configure your board, use the Arduino Software (IDE), and start to tinker with coding and electronics.


TECH SPECS

  • MicrocontrollerSAMD21 Cortex-M0+ 32bit low power ARM MCU
    Board Power Supply (USB/VIN)5V
    Supported Battery(*)Li-Po single cell, 3.7V, 700mAh minimum
    DC Current for 3.3V Pin600mA
    DC Current for 5V Pin600mA
    Circuit Operating Voltage3.3V
    Digital I/O Pins22
    PWM Pins12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19)
    UART1
    SPI1
    I2C1
    Analog Input Pins7 (ADC 8/10/12 bit)
    Analog Output Pins1 (DAC 10 bit)
    External Interrupts8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17)
    DC Current per I/O Pin7 mA
    Flash Memory256 KB
    Flash Memory for Bootloader8 KB
    SRAM32 KB
    EEPROMno
    Clock Speed32.768 kHz (RTC), 48 MHz
    LED_BUILTIN32
    Full-Speed USB Device and embedded Host


DOCUMENTATION








  • Li-Po batteries, Pins,

  • SD and board LEDs On-board SD

  • The on- board SD connector allows you to play with files without adding any extra hardware to the board. Furthermore SD card is driven by a dedicated SPI interface (SPI1) and so any of the pins of the header is busy during SD usage. The SD library automatically recognizes the MKR ZERO and so any modification to the sketch is needed to use it aprat from choosing the right SS pin (SDCARD_SS_PIN).


  • Battery capacity

  • Li-Po batteries are charged up to 4,2V with a current that is usually half of the nominal capacity (C/2). For Arduino MKR ZERO we use a specialized chip that has a preset charging current of 350mAh. This means that the MINIMUM capacity of the Li-Po battery should be 700 mAh. Smaller cells will be damaged by this current and may overheat, develop internal gasses and explode, setting on fire the surroundings. We strongly recommend that you select a Li-Po battery of at least 700mAh capacity. A bigger cell will take more time to charge, but won't be harmed or overheated. The chip is programmed with 4 hours of charging time, then it goes into automatic sleep mode. This will limit the amount of charge to max 1400 mAh per charging round.


  • Battery connector

  • If you want to connect a battery to your MKRZero be sure to search one with female 2 pin JST PHR2 Type connector.  Polarity : looking at the board connector pins, polarity is Left = Positive, Right = GND  Connector datasheet  On the MKRZero, connector is a Male 2pin JST PH Type


  • Additional I2C Port

  • The MKRZero has an additional connector meant as an extension of the I2C bus. It's a small form factor 5-pin connector with 1.0mm pitch. The mechanical details of the connector can be found in the connector datasheet.  The I2C port in addition to the SDA and SCL signals includes the GND and +5V power rails and a digital pin that might be useful when designing an expansion.  The pinout is shown in the following image:



  •
  • Vin

  • This pin can be used to power the board with a regulated 5V source. If the power is fed through this pin, the USB power source is disconnected. This is the only way you can supply 5v (range is 5V to maximum 6V) to the board not using USB. This pin is an INPUT.


  • 5V

  • This pin outputs 5V from the the board when powered from the USB connector or from the VIN pin of the board. It is unregulated and the voltage is taken directly from the inputs. As an OUTPUT, it should not be used as an input pin to power the board.


  • VCC

  • This pin outputs 3.3V through the on-board voltage regulator. This voltage is the same regardless the power source used (USB, Vin and Battery).


  • LED ON

  • This LED is connected to the 5V input from either USB or VIN. It is not connected to the battery power. This means that it lits up when power is from USB or VIN, but stays off when the board is running on battery power. This maximizes the usage of the energy stored in the battery. It is therefore normal to have the board properly running on battery power without the LED ON being lit.


  • CHARGE LED

  • The CHARGE LED on the board is driven by the charger chip that monitors the current drawn by the Li-Po battery while charging. Usually it will lit up when the board gets 5V from VIN or USB and the chip starts charging the Li-Po battery connected to the JST connector.  There are several occasions where this LED will start to blink at a frequency of about 2Hz. This flashing is caused by the following conditions maintained for a long time (from 20 to 70 minutes): - No battery is connected to JST connector.  - Overdischarged/damaged battery is connected. It can't be recharged.  - A fully charged battery is put through another unnecessary charging cycle. This is done disconnecting and reconnecting either VIN or the battery itself while VIN is connected.


  • Onboard LED

  • On MKR ZERO the onboard LED is connected to a dedicated pin (32) and not to 13 as on other boards. It is so suggested to use the LED_BUILTIN define .

  • (*) Note : DO NOT CONNECT to the male JST connector present on the board anything else than a Li-Po battery whose characteristics are compliant with those indicated above. Please DO NOT POWER VIN with more than 5V.

    FAQ

    • Please check this Generic FAQ and adapt it to the MKR ZERO by deleting informations that don't apply to this board.

    • Q: I plugged the board to my PC / MAC but I cannot see the serial port listed on the IDE, I cannot upload sketch to the board!
    • A: The first thing to try is manually put the CPU into bootloader mode, this is accomplished by pressing quickly twice the reset button (you need a pencil to actually push the button). Another try is to change the USB cable: some micro-USB cables are "power only", you'll see the board powered but no data connection to the PC.

    • Q: I plugged the board, I can see the serial port but I cannot upload sketch
    • A: If still on, remove the conductive foam that protects the pins.

    • Q: What's the pin number of the onboard LED? Pin 13 seems to not work...
    • A: The LED is connected to a dedicated pin. Use the LED_BUILTIN constant instead of declaring the pin number.

    • Q: What does the CHRG LED blinking indicate?
    • A: Indicates that the board is charging the LiPo battery connected to the white JST connector. Please note that the charger use a constant current of 350mA, this means that you must use a LiPo battery with a minimum capacity of 700mAh otherwise you risk unpleasant side-effects like flames and/or explosions.

    • Q: After some time the Charge LED starts blinking even if no battery is attached to the JST connector
    • A: The CHARGE LED on the board is driven by the charger chip. This LED starts to blink at a frequency of about 2Hz (slow blink) if a defective or no battery is connected to the JST connector.

    • Q: I see that A0 is marked as DAC0. There is a DAC on that pin? is usable?
    • A: Yes, there is a DAC and it's usable, you can control the pin with analogWrite(..).

    • Q: Which is the VIN range voltage value?
    • A: VIN Nominal voltage value is 5V, range is from 5V to 6V (6V is the Maximum)

    • Q: Which is the polarity of the battery?
    • A: Looking at the connector pins: Left = Positive, Right = GND

    • Q: How can I use the on-board SD?
    • A: The on-board is connected to a dedicated SPI interface. The SD library deals with it, so you use the library as usual. Use SD.begin() without specify any pin number, the number will fallback to the right one.

    • Q: What Vin, 5V and VCC means?
    • A: Vin. This pin can be used to power the board with a regulated 5V source. If the power is fed through this pin, the USB power source is disconnected. This is the only way you can supply 5v (range is 5V to maximum 6V) to the board not using USB. This pin is an INPUT. 5V. This pin outputs 5V from the board when powered from the USB connector or from the VIN pin of the board. It is unregulated and the voltage is taken directly from the inputs. When powered from the battery it supplies around 3.7 V. As an OUTPUT, it should not be used as an input pin to power the board. VCC. This pin outputs 3.3V through the onboard voltage regulator. This voltage is the same regardless the power source used (USB, Vin and Battery).
