FLORA - Wearable electronic platform: Arduino-compatible - v3 [ada-659]
아두이노 호환 / 다기능의 웨어러블 플랫폼 Flora v2! / 45mm, 4.7g / micro-USB port (HID 지원) / 온보드 전원, 리셋버튼 / JST 배터리커넥터 / Micro-B USB cable 별매
판매가격 : 25,000
적립금 :250
상품상태 :신상품
배송방법 :택배
배송지역 :전국
제품코드 :1171234
제조사 :adafruit
브랜드 :아다프루트 [브랜드바로가기]
출시일 :2018-02-07
구매수량 :
총 금액 :
MCU이용 꿀팁

26,400원
52,800원
5,500원
26,400원
125,400원
7,300원
7,300원
149,000원
7,300원
5,060원
상세정보 배송/취소/교환안내 이용후기 상품Q&A

FreaksBot - Motor Driver Mainboard [EF01024]

DOCUMENTS

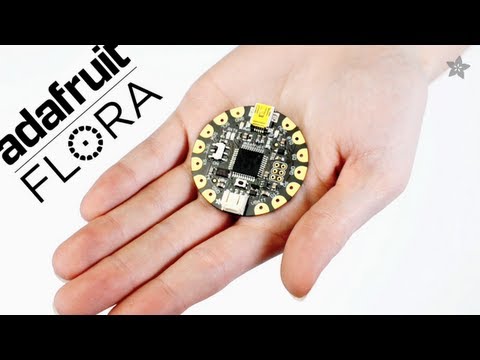

FLORA is Adafruit's fully-featured wearable electronics platform. It's a round, sewable, Arduino-compatible microcontroller designed to empower amazing wearables projects.FLORA comes with Adafruit's support, tutorials and projects. Check out dozens of FLORA tutorials on the Adafruit Learning System, with more added all the time!

The FLORA is small (1.75" diameter, weighing 4.4 grams). The FLORA family also has the best stainless steel threads, sensors, GPS modules and chainable LED NeoPixels, perfect accessories for the FLORA main board.

The FLORA has built-in USB support. Built in USB means you plug it in to program it, it just shows up - all you need is a Micro-B USB cable, no additional purchases are needed! We have a modified version of the Arduino IDE so Mac & Windows users can get started fast - or with the new 1.6.4+ Arduino IDE, it takes only a few seconds to add Flora-support. The FLORA has USB HID support, so it can act like a mouse or keyboard to attach directly to computers.

FLORA has a small but easy to use onboard reset button to reboot the system. The power supply is designed to be flexible and easy to use. There is an onboard polarized 2 JST battery connector with protection schottky diode for use with external battery packs from 3.5v to 16v DC in. Can be used with LiIon/LiPoly, LiFe, alkaline or rechargeable NiMh/NiCad batteries of any size. The FLORA does not have a LiPo charger included by design, this allows safe use with multiple battery types and reduces risk of fire as it is not recommended to charge these batteries on fabric. We suggest one of our micro-lipo chargers if you want to use LiPo batteries with FLORA.

FLORA has onboard power switch connected to 2A power FET for safe and efficient battery on/off control, so you can power quite a bit without burning out your switch. The FLORA has an onboard 3.3v 250mA regulator with a protection diode and USB fuse so that the microcontroller voltage is consistent and can power common 3.3v modules and sensors.

We spent a lot of time on the power supply because the FLORA power system is specifically designed to allow easy control and power of a large quantity of addressable NeoPixels. Flora can easily drive 50 pixels directly from the onboard power supply, or up to 500 with the pixels externally powered by a separate 5V supply.

  • FLORA is fabric friendly-- all the components on board are flush to the PCB and won't snag delicate garments (it does not use FTDI headers).
  • FLORA is extremely beginner-friendly - it is difficult to destroy the FLORA by connecting a battery backwards due to polarized connector and protection diodes. The on-board regulator means that even connecting a 9V battery will not result in damage or tears.
  • The FLORA has 4 indicator LEDs: power good, digital signal LED for bootloader feedback, data rx/tx. Also onboard is an ICSP connector for easy reprograming for advanced users. Flora v2 even has an RGB NeoPixel for even more colorful lighting.
  • There are 14 sewing tap pads for attachment and electrical connections. Data buses are interleaved with power and ground pads for easy module and sensor attachments without worrying about overlapping traces which are not possible with conductive thread.
  • As of July 7 2016 we're now selling Flora v3 with  alligator-clip friendly pads.
  • The FLORA works great with the Arduino IDE and is super easy to install support if you have IDE 1.6.4 or later

The FLORA is not the first wearable Arduino / Arduino-compatible. Leah Buechley’s Lilypadwas developed in 2007 and while they are both round, FLORA is a completely new platform that works seamlessly with the FLORA accessories.

The FLORA is made in NYC at Adafruit, it was designed by Limor Fried (Ladyada), Adafruit's founder and engineer. Adafruit has a proven track record of providing 100+ high-quality libraries for Arduino/Arduino IDE, hundreds of tutorials, open-source code and contributions to the Arduino project. Ladyada was a member of the MIT wearables group and likes to sew.

You may get an off-white or black JST connector.






TECHNICAL DETAILS

  • Dimensions: 45mm round x 7mm thick/ 1.8" round x 0.3" thick
  • Weight: 4.7g

Datasheets, EagleCAD PCB files, Fritzing object and more in the tutorial!

Revision History:

  • As of July 7 2016 we're now selling Flora v3 with a lovely  new silkscreen, and alligator-clip friendly pads. Otherwise it's the exact same shape and circuit.
  • As of May 12th, 2015, we're now selling the Flora v2! The Flora v2 now comes with a micro-USB port instead of a mini-USB port and a programmable NeoPixel installed (it's connected to Digital 8, ready for your blinky commands)
  • As of Oct 1st, 2016, we're now selling the Flora v3! This Flora now has large alligator-clip friendly pads but can still be sewn into clothing.
