CP2102 Micro USB to TTL 컨버터모듈 [SZH-CVBE-037]
CP2102 USB to RS232 Converter 칩셋 기반 / Micro USB to TTL 프로젝트에 알맞도록 설계 / Status LED / Operating Voltage: 5V. / 21mm * 16mm / 6-Pin Header 포함
판매가격 : 3,300
적립금 :33
상품상태 :신상품
배송방법 :택배
배송지역 :전국
제조사 :SMG (중국)
출시일 :2018-02-07
구매수량 :
총 금액 :
MCU이용 꿀팁

27,500원
99,000원
46,200원
20,900원
36,300원
24,200원
18,700원
19,530원
25,000원
31,900원
상세정보 배송/취소/교환안내 이용후기 상품Q&A

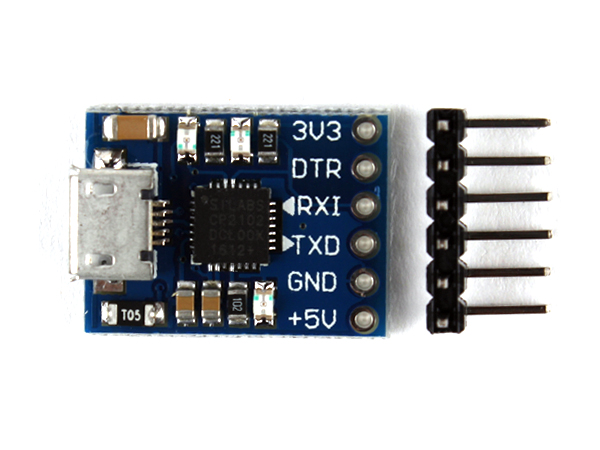

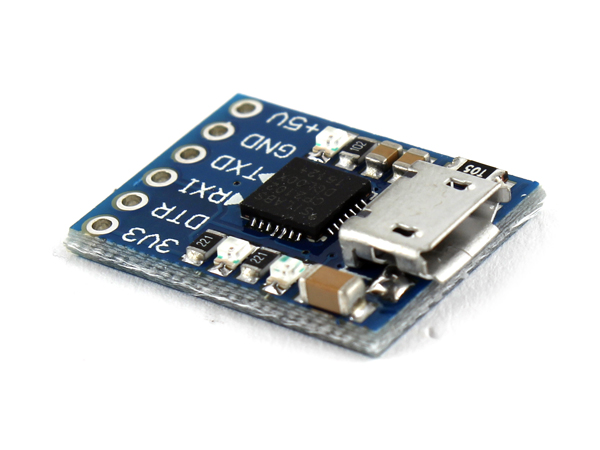

CP2102 Micro USB to TTL 컨버터 모듈 [SZH-CVBE-037]

Features

  1. the original chip CP2102, generate COM port after installing the driver.
  2. then the standard input MICRO MINI-USB cable connected to the computer USB interface, with 3.3V and 5V two power output
  3. with a resettable fuse. In the event of accidental short-circuit can effectively protect your device and computer USB port to download
  4. on-board status indicators, receiving indicator properly installed drive status indicator remains, send and receive indicator flashes when the communication with run LED indicator.
  5. supports baud rates from 300bps ~ 1Mbps between
  6. the communication format support: 1) data bits 5,6,7,8; 2) support 1.5, 2 stop bits; 3) odd, even, mark, space, none parity
  7. supported operating systems: windows 8.1 / 7 / vista / xp / 98, Mac OS-X / OS-9, Linux
  8. USB seat MICRO MINI-USB interface Block
  9. chip components for the regular company of welding, stable quality, beautiful appearance
  10. with DTR trigger signal output can be directly arduino pro mini ATMEGA328P and other Arduino board download traffic.
  11. module size: 15.7mm * 21.2mm super small.



Specifications

  1. embedded USB transceiver, no external circuit device
  2. containing clock circuit, no external circuit device
  3. contains power-on reset circuit
  4. The on-chip voltage regulator within the 3.3V output
  5. Meet the USB2.0 specification requirements
  6. SUSPEND pins support USB suspend state
  7. asynchronous serial data bus compatible with all handshakes and modulation controller interface signals
  8. Support data format is 8 data bits, 1 stop bit and the parity bit
  9. connotation 512 byte receive buffer and 512 byte transmit buffer
  10. Supports hardware or X-ON / X-OFF Handshake



How to install the driver

win7 / win8
1, first open the package, like the way next, remember installation directory
2, according to the following method to start the service
3. Locate the driver in Device Manager, select Update Driver, browse my computer for driver,
select the directory just installed, determine waiting like
win8.1

Right update drivers automatically find the drivers, it will prompt the driving data is invalid, in fact, the problem often encountered in windows8, the drive is no problem, the beginning has been installed on, and later discovered may be a hardware incompatibility.
If you are using Windows8 or windows 8.1, but is non-genuine ghost or other systems, and uses a variety of optimization tools Streamlining system, then in the process of installing the driver, you may encounter the "Data invalid" wrong
"Invalid Data" solutions are as follows:
1, press Winkey + R on the keyboard, the pop-up "Run" dialog, enter "services.msc",
also by under "Computer Management" window, find the "service";
2, found in the list of services "Device Install Service" and "Device Setup Manager" two service items,
make sure these two services is turned on, if not open, you can click the left side of the "Start" service.

Driver Download: http://www.silabs.com/products/microcontroller/downloads.asp

※ 공급 제조사는 재고 사정에 따라 동일 사양의 대체상품으로 공급될 수 있습니다.
※ 상기 제품에 첨부된 데이타시트는 참고사항입니다.데이타시트에 표기된 내용에 대하여 본사는 어떠한 기술적인 문의 및 발생하는 문제에 대한 법적인 책임을 지지는 않습니다.
※ 사용자께서는 사용 전 반드시 제품에 대한 테스트 및 확인 절차 후 사용하시기 바랍니다
