Cortex-M3 STM32F103VET6 소형개발보드 [SZH-DVBT-020]
STM32103VET6 (LQFP 100 Package) / MINI USB interface / standard JTAG interface ULINK2 and JLINKV8 simulation (JTAG SWD support) / size: 7.0cm * 5.0cm
판매가격 : 19,250
적립금 :193
상품상태 :신상품
제품코드 :00001326901
제조사 :SMG (중국)
브랜드 :SZH [브랜드바로가기]
출시일 :2018-02-07
구매수량 :
총 금액 :
MCU이용 꿀팁

104,500원
187,000원
38,500원
45,100원
15,840원
27,500원
88,000원
22,000원
46,200원
6,600원
상세정보 배송/취소/교환안내 이용후기 상품Q&A

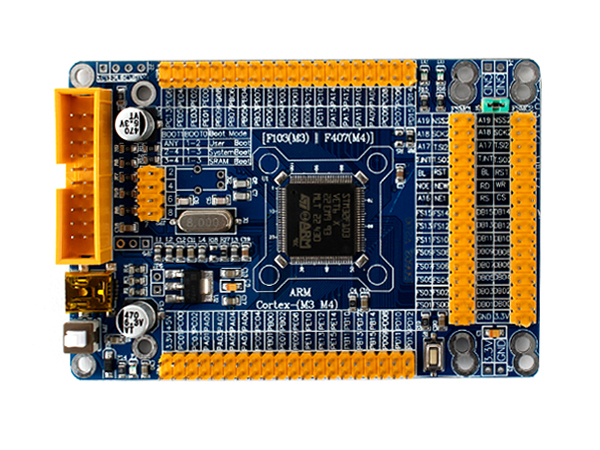

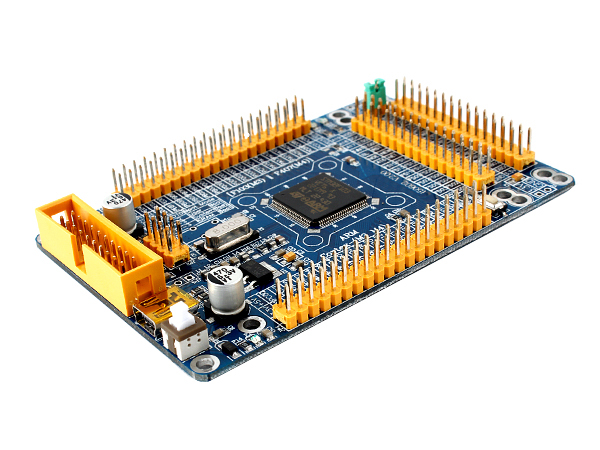

Cortex-M3 STM32F103VET6 소형 개발보드 [SZH-DVBT-020]



Features

  • CPU Model: STM32103VET6 (LQFP 100 Package) (STM3210Vx compatible with all models) FLASH 512KB RAM 64KB space big enough run UCOS UCGUI LWIP UIP etc. Large Stack
  • All IO lead (upper layer port number to identify, with the lower port number and the second port Identification of features user-friendly debugging functions IIC SPI AD USART second save a lot of time to read the document and when the jumper less error-prone)
  • A switch button
  • A power indicator (red)
  • A reset pin
  • A MINI USB interface, power supply and USB-Slave Communication
  • a standard JTAG interface ULINK2 and JLINKV8 simulation (JTAG SWD support)
  • Select Serial download jumpers run (by way of selection panel screen for easy selection)
  • There are three road 3.3V External power supply 5V power supply pin all the way to pin multiple GND pin (easy commissioning an external device, without reprovision power)
  • 2 Road FSMC bus leads can debug two TFT screens can also simultaneously debug peripheral bus other methods [such as TFT + DM9000 network module (OUR)]

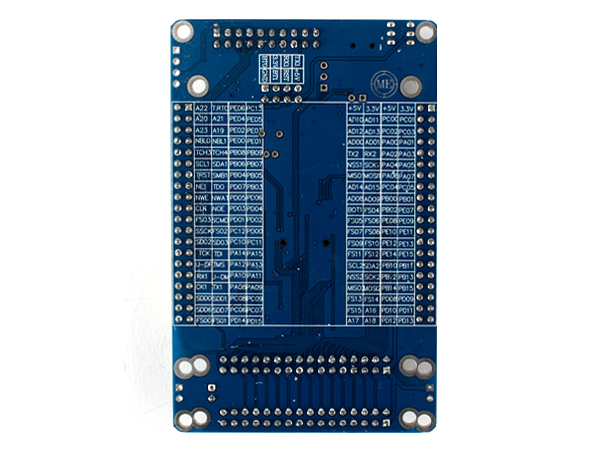

  • All IO ports screen [Mark all the IO port opposite the front label marked IO port and the second function facilitates debugging SPI IIC USART AD and other functions without having to look for IO function control PDF] full gilt pin
  • A plurality of positioning holes, you can plug a variety of TFT (a plurality of positioning holes reserved for user-mix) and AC adapter is compatible development board TFT interface and the positioning hole.
  • CPU each pin 10 (in some cases used to) digital identity
  • 2 Road user LED indicator (red), through a common ground to take jump, so a separate debug LED function,When debugging other needs of this IO port can remove the jumper cap is not easy to interfere with other functions.
  • J04 (TX1 RX1 3.3V GND) alone leads to facilitate connecting serial peripheral equipment, as well as debugging or download the program.




※ 공급 제조사는 재고 사정에 따라 동일 사양의 대체상품으로 공급될 수 있습니다.
※ 상기 제품에 첨부된 데이타시트는 참고사항입니다.데이타시트에 표기된 내용에 대하여 본사는 어떠한 기술적인 문의 및 발생하는 문제에 대한 법적인 책임을 지지는 않습니다.
※ 사용자께서는 사용 전 반드시 제품에 대한 테스트 및 확인 절차 후 사용하시기 바랍니다
