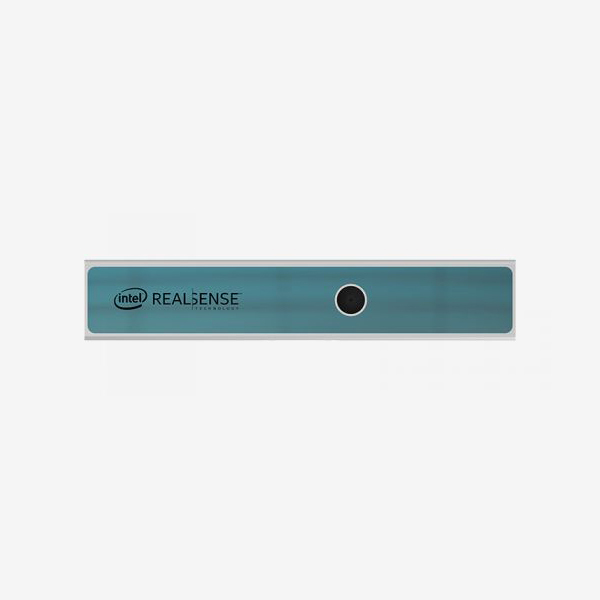

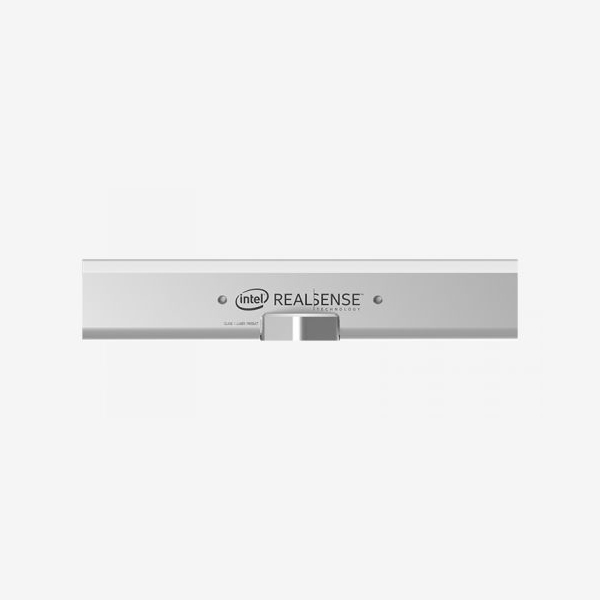

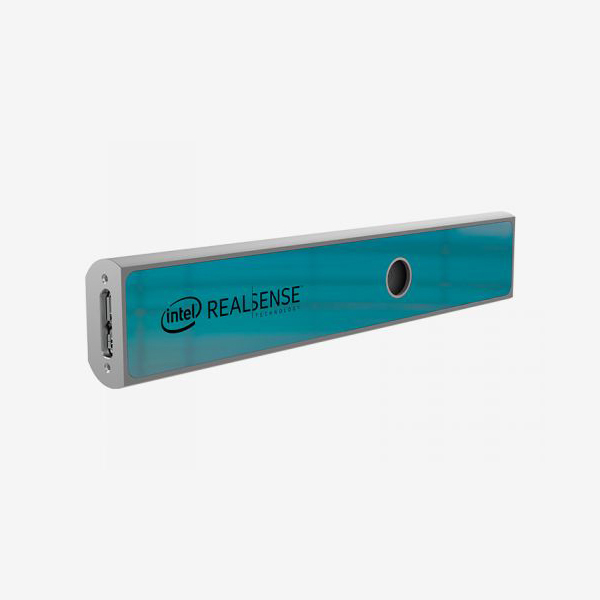

Intel® RealSense™ Depth Camera SR305

Details

The Intel® RealSense™ Depth Camera SR305 is optimized for best depth at 0.2-1.5m. As with other structured and coded light depth cameras, it functions best indoors or in a controlled lighting situation. It can also function well at lower light levels down to 0 Lux, since infrared light is being projected onto the scene from the camera.

The Intel® RealSenseTM Depth Camera SR305 is supported with cross-platform and open source Intel® RealSense™ SDK 2.0.

WARNING This product can expose you to Antimony oxide (Antimony trioxide), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov .

Tech specs



Use Environment Indoor
Depth Technology Coded Light
Main Intel® RealSense™ component Intel® RealSense™ Depth Module SR300
Depth Field of View (FOV)
(Horizontal × Vertical)
69°±3° x 54°±2°
Depth Stream Output Resolution Up to 640 x 480
Depth Stream Output Frame Rate Up to 60 fps
Minimum Depth Distance (Min-Z) 0.2m
Sensor Shutter Type Rolling Shutter
Maximum Range Up to 1.5m. Accuracy varies depending on calibration, scene, and lighting condition.
RGB Sensor Resolution and Frame Rate 1920 x 1080 at 30 fps
RGB Sensor FOV
(Horizontal x Vertical)
68° x 41.5° (±2°)
Camera Dimension
(Length x Depth x Height)
139 mm x 26.13 mm x 12** mm
** 20.80 mm with the mounting bracket
Connectors USB* 3.1 Gen 1* Micro B
Mounting Mechanism - Two M3x0.5 mounting points.
- Additional mounting bracket with one 1/4?20 UNC thread mounting point. Tripod.


























Intel® RealSense™ Depth Camera SR305
