인텔리얼센스뎁스카메라 Intel RealSense Depth D435i
판매가격 : 309,800
적립금 :3,090
상품상태 :신상품
배송방법 :택배
배송지역 :전국
제품코드 :13017225
원산지 :기타|기타
제조사 :Intel
예약상품 :
총 금액 :
MCU이용 꿀팁

11,500원
37,100원
17,600원
80,000원
107,000원
7,300원
4,500원
35,700원
39,000원
14,200원
상세정보 배송/취소/교환안내 이용후기 상품Q&A
품명/모델명 품명:[상세설명참조] / 모델명:[상세설명참조] 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항:[상세설명참조]
제조국 또는 원산지 제조국 또는 원산지:[상세설명참조] 제조자/수입품여부/수입자 제조자:[상세설명참조] / 수입자:[상세설명참조]
A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호:070-7019-8884

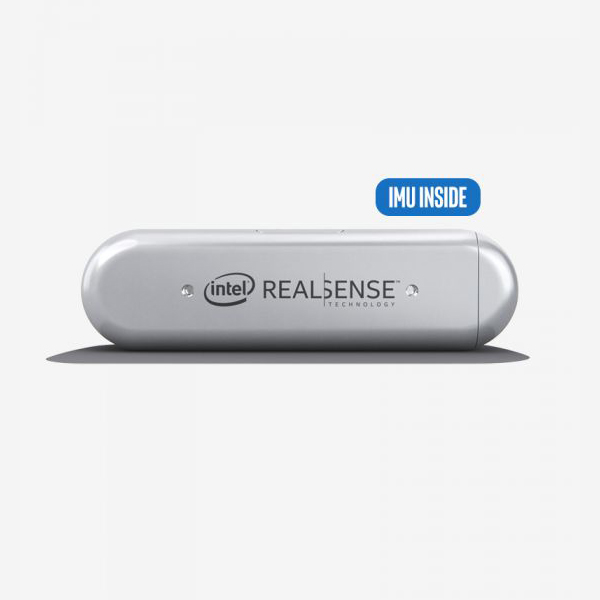

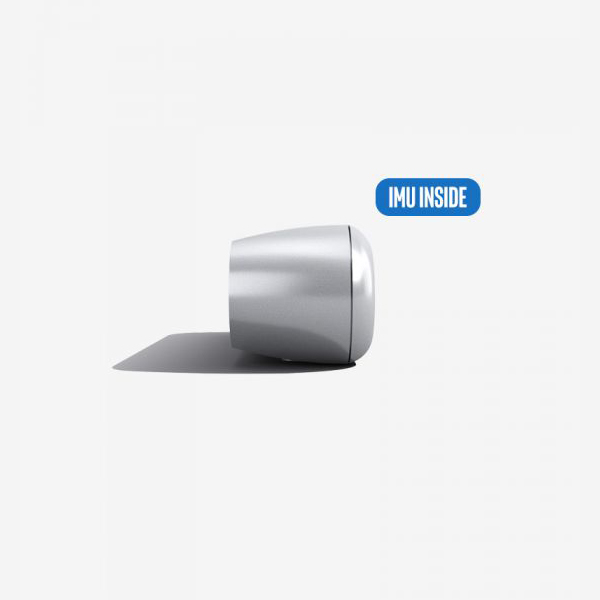

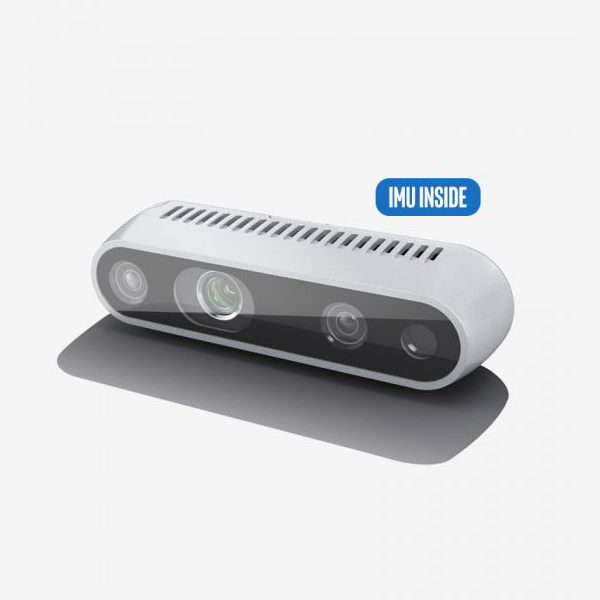

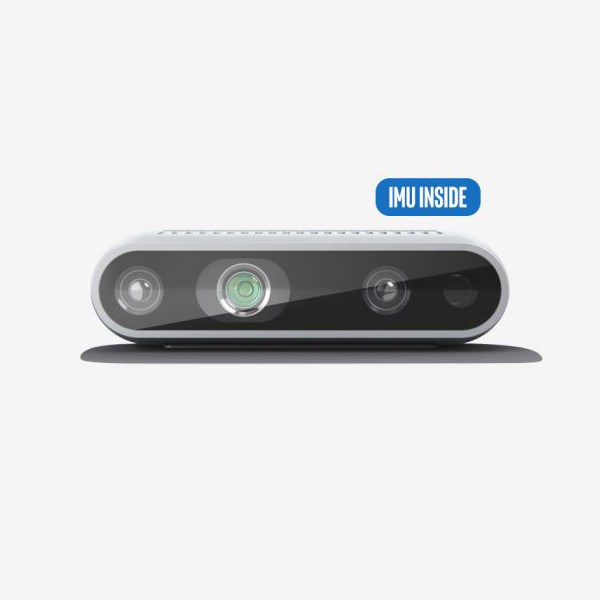

Intel® RealSense™ Depth Camera D435i

Details

Intel® RealSense™ Depth Camera D435i combines the depth sensing capabilities of the D435 with the addition of an inertial measurement unit (IMU). For great scans, an IMU provides an extra set of data allowing for better dense reconstruction. Alternately, in robotics, the Robotic Operating System (ROS) takes this input for your robot so your can understand its position in the world.

The Intel RealSense D435i includes:

  • A BMI055 inertial measurement unit.
  • The Intel RealSense SDK 2.0 which provides a depth and IMU data stream.
  • IMU Data that is time stamped to align with depth data as needed.
  • Desktop tripod.
  • USB-C* cable.

For more information regarding Intel® RealSense™ Depth Cameras and Intel® RealSense™ technology, go to intelrealsense.com

The latest release of the Intel® RealSense™ SDK 2.0 is available on our GitHub page at https://github.com/IntelRealSense/librealsense/ .

WARNING This product can expose you to Antimony oxide (Antimony trioxide), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov .

Tech specs



Inertial measurement unit BMI055
Use Environment Indoor/Outdoor
Depth Technology Active IR stereo
Main Intel® RealSense™ component - Intel® RealSense™ Vision Processor D4
- Intel® RealSense™ module D430
Depth Field of View (FOV)
(Horizontal × Vertical × Diagonal)
86° x 57° (±3)°
Depth Stream Output Resolution Up to 1280 x 720
Depth Stream Output Frame Rate Up to 90 fps
Minimum Depth Distance (Min-Z) 0.1 m
Sensor Shutter Type Global Shutter
Maximum Range Approx. 10 meters; Varies depending on calibration, scene, and lighting condition
RGB Sensor Resolution and Frame Rate 1920 x 1080 at 30 fps
RGB Sensor FOV
(Horizontal x Vertical x Diagonal)
69.4° x 42.5° x 77° (+/- 3°)
Camera Dimension
(Length x Depth x Height)
90 mm x 25 mm x 25 mm
Connectors USB-C* 3.1 Gen 1
Mounting Mechanism - One 1/4-20 UNC thread mounting point
- Two M3 thread mounting points






















Intel® RealSense™ Depth Camera D435i

Details

Intel® RealSense™ Depth Camera D435i combines the depth sensing capabilities of the D435 with the addition of an inertial measurement unit (IMU). For great scans, an IMU provides an extra set of data allowing for better dense reconstruction. Alternately, in robotics, the Robotic Operating System (ROS) takes this input for your robot so your can understand its position in the world.

The Intel RealSense D435i includes:

  • A BMI055 inertial measurement unit.
  • The Intel RealSense SDK 2.0 which provides a depth and IMU data stream.
  • IMU Data that is time stamped to align with depth data as needed.
  • Desktop tripod.
  • USB-C* cable.

For more information regarding Intel® RealSense™ Depth Cameras and Intel® RealSense™ technology, go to intelrealsense.com

The latest release of the Intel® RealSense™ SDK 2.0 is available on our GitHub page at https://github.com/IntelRealSense/librealsense/ .

WARNING This product can expose you to Antimony oxide (Antimony trioxide), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov .

Tech specs



Inertial measurement unit BMI055
Use Environment Indoor/Outdoor
Depth Technology Active IR stereo
Main Intel® RealSense™ component - Intel® RealSense™ Vision Processor D4
- Intel® RealSense™ module D430
Depth Field of View (FOV)
(Horizontal × Vertical × Diagonal)
86° x 57° (±3)°
Depth Stream Output Resolution Up to 1280 x 720
Depth Stream Output Frame Rate Up to 90 fps
Minimum Depth Distance (Min-Z) 0.1 m
Sensor Shutter Type Global Shutter
Maximum Range Approx. 10 meters; Varies depending on calibration, scene, and lighting condition
RGB Sensor Resolution and Frame Rate 1920 x 1080 at 30 fps
RGB Sensor FOV
(Horizontal x Vertical x Diagonal)
69.4° x 42.5° x 77° (+/- 3°)
Camera Dimension
(Length x Depth x Height)
90 mm x 25 mm x 25 mm
Connectors USB-C* 3.1 Gen 1
Mounting Mechanism - One 1/4-20 UNC thread mounting point
- Two M3 thread mounting points























※ 공급 제조사는 재고 사정에 따라 동일 사양의 대체상품으로 공급될 수 있습니다.
※ 상기 제품에 첨부된 데이타시트는 참고사항입니다.데이타시트에 표기된 내용에 대하여 본사는 어떠한 기술적인 문의 및 발생하는 문제에 대한 법적인 책임을 지지는 않습니다.
※ 사용자께서는 사용 전 반드시 제품에 대한 테스트 및 확인 절차 후 사용하시기 바랍니다
